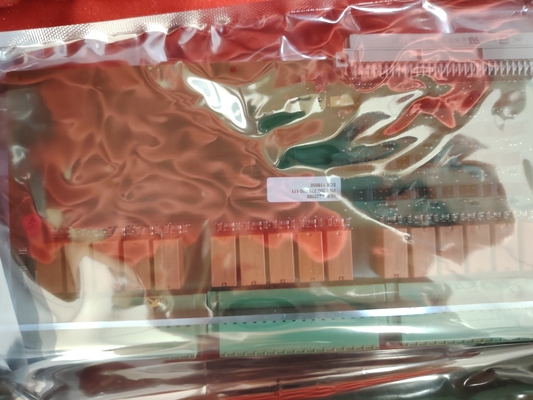

RLC16 200-570-101-013 Relay Card In Stock ESD System Card

RLC16 200-570-101-013 Relay Card In Stock ESD System Card

  • RLC16 200-570-101-013 Relay Card In Stock ESD System Card
  • RLC16 200-570-101-013 Relay Card In Stock ESD System Card
  • RLC16 200-570-101-013 Relay Card In Stock ESD System Card
RLC16 200-570-101-013 Relay Card In Stock ESD System Card
Product Details:
Place of Origin: China
Brand Name: Other Brands
Certification: CO
Model Number: RLC16
Payment & Shipping Terms:
Minimum Order Quantity: 1EA
Price: USD
Packaging Details: Original
Delivery Time: 3-5working days
Payment Terms: T/T
Supply Ability: 10EA
Contact Now
Detailed Product Description
Brand Name: Other Brands Product Model: RLC16
Part Number: 200-570-101-013 Packing: Original
Warranty: 1 Year Lead Time: 3-5working Days
Highlight:

RLC16 Relay Card

,

200-570-101-013 Relay Card

,

ESD System Card Relay Card

RLC16 200-570-101-013 Relay Card In Stock ESD System Card





Product Details:



Brand Name Others
Model RLC16 200-570-101-013
Condition New
Gross Weight/Shipping Weight 2.2 lbs / 35.2 oz / 1kg
Packing Size 6.4" x 6.4" x 4.8" (14cm x 10 cm x 6 cm)
Country of Origin/Original Country China
Lead Time In Stock
Shipping Port Xiamen
Payment T/T
Sales Price Inquiry
Color Depend on product
Warranty 12 months
Lead time In Stock
Courier partners DHL, UPS, TNT, FedEx and EMS





Description:

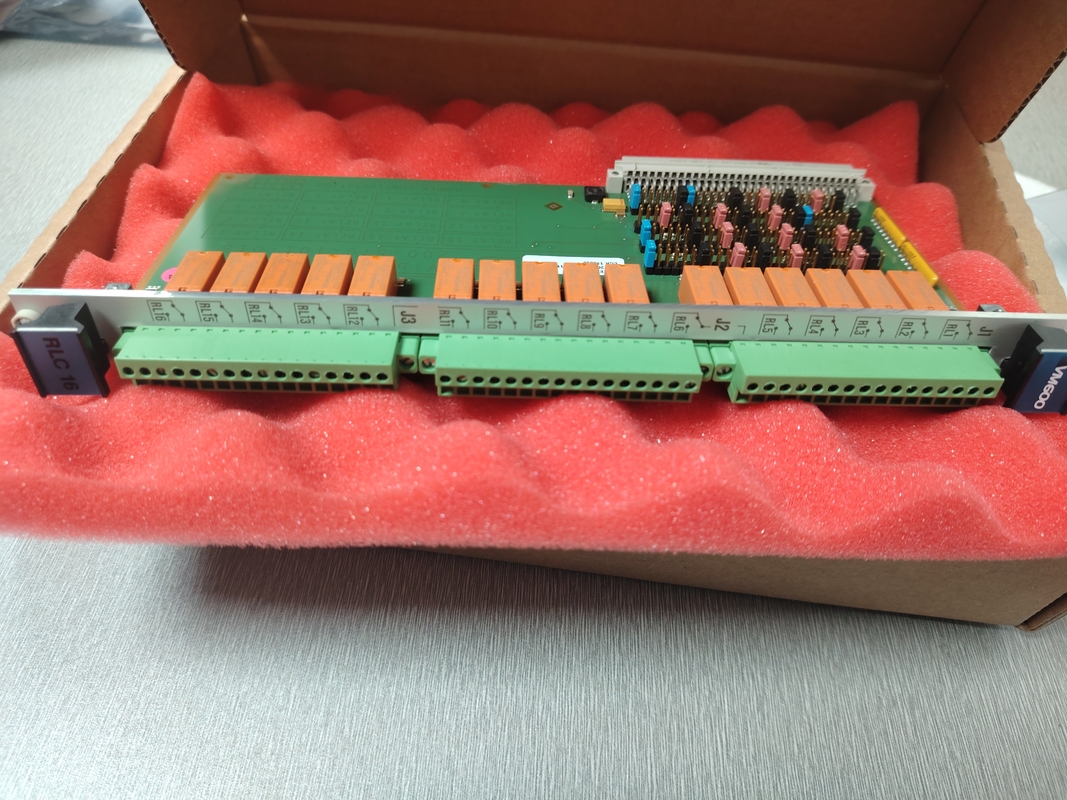

The RLC16 panel has three screw terminals for each of its 16 relays. These terminals are asfollows:

• NC – The normally closed relay contact

• NO – The normally open relay contact

• COM – The common relay contact.

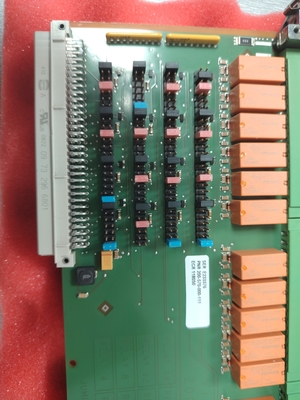

The actual behaviour of each individual relay depends on the jumpers on the RLC16 card, for example, a relay can be configured to be normally energised (NE) or normally de-energised (NDE).



The RLC16 panel (rear of rack) contains three terminal strips, identified as J1, J2 and J3. Each strip consists of a socket and a mating connector, which contains 16screw terminals. The screw terminals can accept wires with a cross section of ≤1.5 mm2.



Each socket and mating connector can be equipped with a mechanical key system to prevent incorrect connection.



The RLC16 is used to supplement the on-board (local) relays on IOC4T and IOC8T cards. The jumpers on the RLC16 must be set up at the same time as these cards are configured.



The RLC16 card does not contain any electronic keying mechanism to prevent it being installed in the wrong slot of a VM systems rack. This is because the RLC16 does not contain any intelligence (that is, it is not programmed with a configuration) and does not function as a card pair (such as the MPC4 / IOC4T or AMC8 / IOC8T).



Although RLC16 cards can be installed in almost every slot of a rack, the actual slot location of an RLC16 card in a configured system is dictated by the Open Collector (OC) Bus and other details of the VM MPS system configuration.
