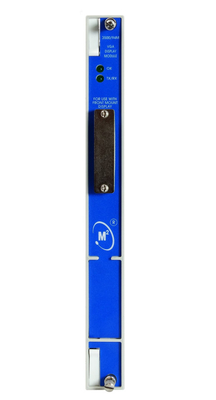

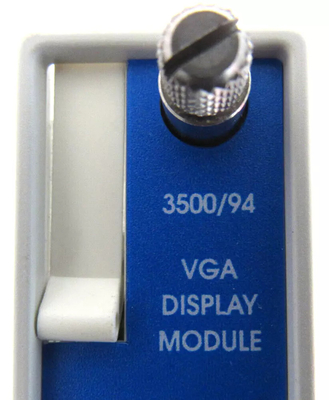

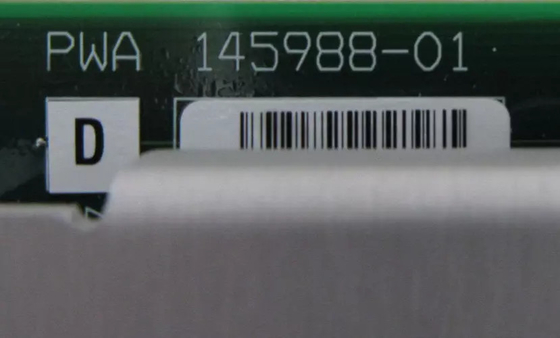

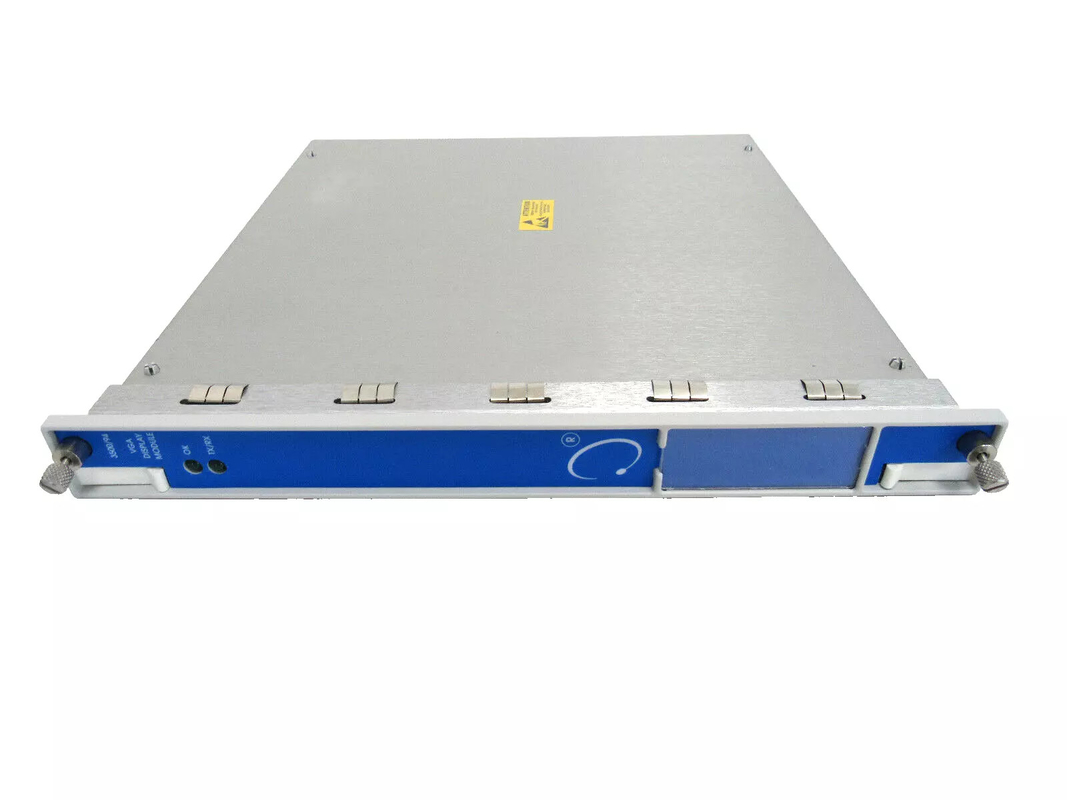

Bently Nevada 3500/94 145988-01 VGA Display Monitor Module

Bently Nevada 3500/94 145988-01 VGA Display Monitor Module

Product Details:

Description:

The 3500/94M VGA module displays all 3500 machinery protection system information, including:

• System event list
• Alarm event list
• All module and channel data
• Alarm and OK status
• Nine custom display options

Use the 3500 Rack Configuration Software to configure up to nine custom screens. By default, one bar graph screen shows all of the 1X-filtered vibration measurements, while another shows the proximity transducer gap values.

You can organize custom screens into machine train groups. You can also organize system data into any pages on the custom screen.

The 3500/94M is comprised of:

• The 3500/94M VGA module
• An I/O module
• A 10" or 15" VGA touch screen display

You can mount the VGA display monitor using standard cables up to 6 m (20 ft) from a 3500 rack, or using a supported Keyboard Video Monitor (KVM) Extender, up to 10 km (6.2 miles) from the 3500 rack.

The 3500/94M requires the 3500/22 Transient Data Interface (TDI) module. It also requires these or newer versions of the following firmware and software:

• 3500/94M Firmware 4.06, Rev. C
• 3500/22 Firmware (TDI) Rev 1.71
• 3500/01 Software (Rack Config) Rev 5.6
• 3500/02 Software (Op Display) Rev 2.21
• 3500/03 Software (Data Acquisition) Rev 1.22

The 3500/94M requires the following hardware:  3500/22 TDI - Transient Data Interface

Datesheet Link: 3500-94M VGA Display Monitor.pdf
