Bently Nevada 3500/33-02-00 149992-02 Spare 16-Channel Failsafe Relay Output Module

Bently Nevada 3500/33-02-00 149992-02 Spare 16-Channel Failsafe Relay Output Module

Product Details:

Additional Information:

Description:

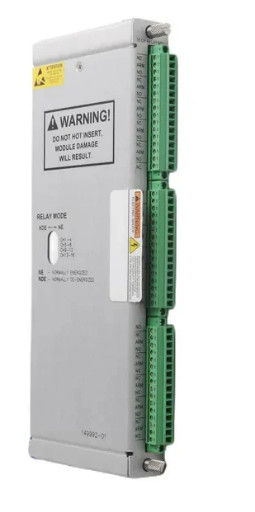

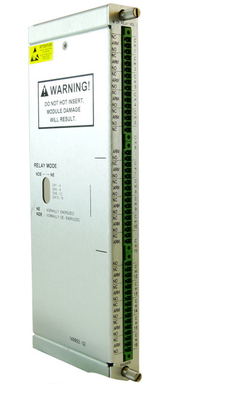

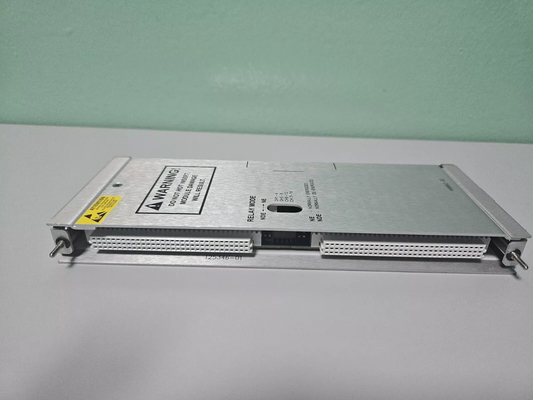

The 3500/33 16-Channel Relay Module is a full-height module that provides 16 relay outputs. You can place any number of 16-channel relay modules in any of the slots to the right of the Transient Data Interface (TDI) Module.

Each output of the 3500/33 16-Channel Relay Module can be independently programmed to perform voting logic.

The 3500/33 Relay Modules provide a set of relays that can be programmed to actuate based on alarm conditions in other monitor modules in the rack. The /33 module uses single pole double throw (SPDT) relays. The /33 has 16 SPDT relay channels and also be configured to act as if it has DPDT relays. Doing this will use two SPDT relays to perform the function of every DPDT relay that is configured.

Each relay of the module includes Alarm Drive Logic. Programming for the Alarm Drive Logic uses AND and OR logic and may use the following:

• Alarming inputs (alert and danger statuses)
• Not-OK
• Individual Measured Variables from any monitor channel or any combination of monitor channels in the rack

You can program the Alarm Drive using the 3500 Rack Configuration Software.

Order information

Datasheet Link: 3500-33 16-Channel Relay Module Datasheet.pdf
