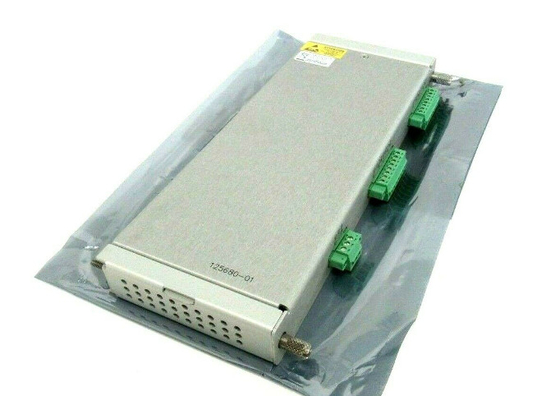

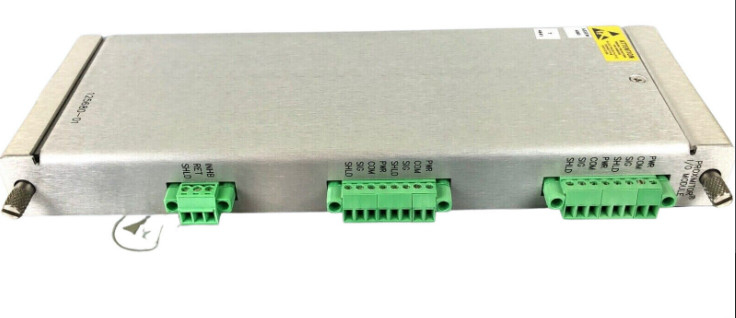

Bently Nevada 3500/40-01-00 125680-01 Proximitor I/O Module With Internal Termination

Bently Nevada 3500/40-01-00 125680-01 Proximitor I/O Module with Internal Termination

Product Details:

Additional Information:

Description:

The 3500/40M Proximitor Monitor is a four-channel monitor that accepts input from Bently Nevada proximity transducers, conditions the signal to provide various vibration and position measurements, and compares the conditioned signals with user-programmable alarms. The user can program each channel of the 3500/40M with the 3500 Rack Configuration Software to perform any of the following functions:

• Radial vibration
• Eccentricity l REBAM
• Thrust position
• Differential expansion

The primary purpose of the 3500/40M Proximitor Monitor is to provide the following:

• Machinery protection by continuously comparing monitored parameters against configured alarm setpoints to drive alarms
• Essential machine information for both operations and maintenance personnel

Each channel, depending on configuration, typically conditions its input signal to generate various parameters called static values. You can configure alert setpoints for each active static value and danger setpoints for any two of the active static values.

Ordering Considerations

The 3500/40M Module requires the following (or later) firmware, and software revisions:

3500/01 Software – Version 2.50

3500/02 Software – Version 2.20

3500/03 Software – Version 1.21

When ordering I/O Modules with External Terminations the External Termination Blocks and Cable must be ordered separately for each

I/O Module.

External Termination Blocks cannot be used with Internal Termination I/O Modules.

Bussed External Termination Blocks are to be used with TMR I/O Modules only.

Order information
