Bently Nevada 330850-50-05 3300XL Proximity Transducer System 25 mm Proximitor Sensor

Bently Nevada 330850-50-05 3300XL Proximity Transducer System 25 mm Proximitor Sensor

Product Details:

Additional Information:

Description:

The 3300 XL 25 mm Transducer System consists of a separate 25 mm probe, an extension cable, and a 3300 XL 25 mm Proximitor Sensor. The 0.787 V/mm (20 mV/mil) output gives this system a linear range of 12.7 mm (500 mils). Based on this linear range, the 3300 XL 25 mm Transducer System is

suitable for measuring differential expansion (DE) on midsize to large steam turbine generators caused by the difference in growth rates between the turbine rotor and the machine stator.

The Differential Expansion measurement is made by two proximity transducers observing a collar or ramp some distance from the thrust bearing. Typical transducer mounting arrangements are:

• Two transducers observing the same side of a collar.
• Two complementary input transducers observing opposite sides of a collar, effectively doubling the measurable DE range.

Two transducers with at least one transducer viewing a ramp on a rotor and the second transducer viewing either a separate ramp or a different location on the rotor to compensate for radial movement. This arrangement adds some error to the measurement, but can measure a longer total DE distance than the complementary measurement. The criteria for selecting a mounting method are the size of the available target, the expected amount of rotor axial movement and the type of DE target that exists in the machine (collar versus ramp). If sufficient collar height is available, two transducers observing the same side of acollar is the preferred configuration. These two transducers provide redundant measurements.

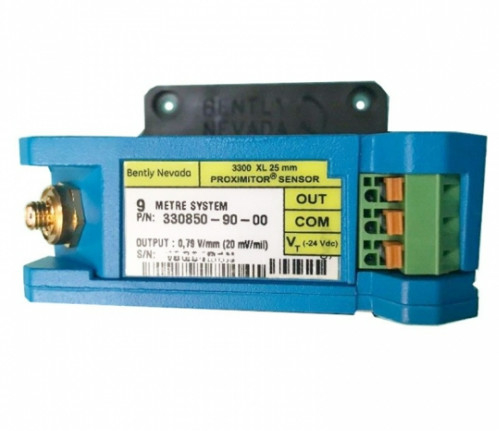

The 3300 XL 25 mm Proximitor Sensor has the same advanced features as our previous 3300 XL Proximitor Sensors. Its thin design allows it to be mounted in either a high-density DIN-rail installation or a more traditional panel mount configuration. Improved RFI/EMI immunity allows the 3300 XL Proximitor Sensor to achieve European CE mark approvals without any special mounting considerations. This RFI immunity also prevents the transducer system from being adversely affected by nearby high frequency radio signals. SpringLoc terminal strips on the Proximitor Sensor require no

special installation tools and facilitate faster, highly robust field wiring connections.
