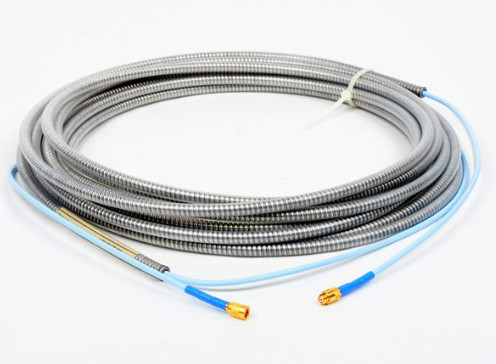

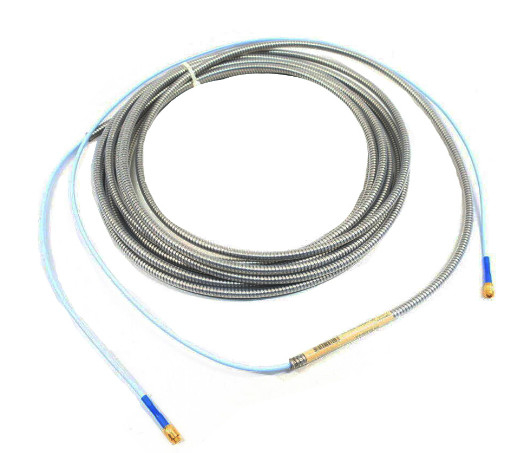

Bently Nevada 330130-080-01-00 3300 XL 8mm Proximity Transducer System Armored Extension cable

Bently Nevada 330130-080-01-00 3300 XL 8mm Proximity Transducer

System Armored Extension cable

Product Details:

Additional Information:

Description:

The 3300 XL 8 mm Proximity Transducer System consists of:

• One 3300 XL 8 mm probe
• One 3300 XL extension cable
• One 3300 XL Proximitor Sensor

The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values.

The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems, the standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements

The 3300 XL probe and extension cable also reflect improvements over previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. The probe’s cable incorporates a patented CableLoc design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe tip.

You can also order 3300 XL 8 mm probes and extension cables with an optional FluidLoc cable option. This option prevents oil and other liquids from leaking out of the machine through the cable’s interior.

Order information
