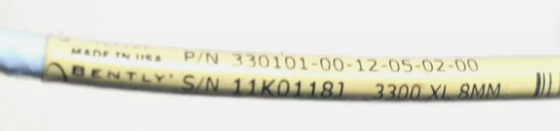

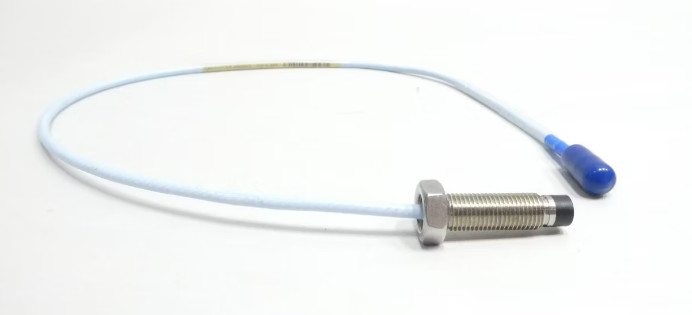

Bently Nevada 330101-00-12-05-02-00 8mm Proximity Transducer System 8 mm Proximity Probe

Bently Nevada 330101-00-12-05-02-00 8mm Proximity Transducer System 8 mm Proximity Probe

  • Bently Nevada 330101-00-12-05-02-00 8mm Proximity Transducer System 8 mm Proximity Probe
  • Bently Nevada 330101-00-12-05-02-00 8mm Proximity Transducer System 8 mm Proximity Probe
Bently Nevada 330101-00-12-05-02-00 8mm Proximity Transducer System 8 mm Proximity Probe
Product Details:
Place of Origin: USA
Brand Name: Bently Nevada
Certification: CO
Model Number: 330101-00-12-05-02-00
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: inquiry
Packaging Details: original
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 10 Piece per a day
Contact Now
Detailed Product Description
Product Name: Bently Nevada 330101-00-12-05-02-008mm Proximity Transducer System 8 Mm Proximity Probe Product Model: 330101-00-12-05-02-00
Condition: In Stock Quality: New And Original
Market: Worldwide Market Material: Original
Lead Time: IN STOCK Shipping Terms: UPS / DHL / TNT / EMS / Fedex
Gross Weight: 1kg Packing Size: 6" X 4" X 2" (15 Cm X 10 Cm X 5 Cm)
Highlight:

8mm Proximity Transducer System

,

Bently Nevada 330101-00-12-05-02-00

,

8mm Proximity Probe

Bently Nevada 330101-00-12-05-02-008mm Proximity Transducer

System 8 mm Proximity Probe





Product Details:



Brand Name Bently Nevada
Model 330101-00-12-05-02-00
Condition New
Gross Weight/Shipping Weight 2.2 lbs / 35.2 oz / 1kg
Packing Size 6.4" x 6.4" x 4.8" (14cm x 10 cm x 6 cm)
Country of Origin/Original Country United States (USA)
Lead Time In Stock
Shipping Port Xiamen
Payment T/T
Sales Price Inquiry
Color Depend on product
Warranty 12 months
Lead time 5-8 work days
Courier partners DHL, UPS, TNT, FedEx and EMS





Additional Information:



N/M N/M





Description:



The 3300 XL 8 mm Proximity Transducer System consists of:

  • One 3300 XL 8 mm probe
  • One 3300 XL extension cable
  • One 3300 XL Proximitor Sensor



The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values.



The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.



The 3300 XL probe, extension cable, and Proximitor sensor have corrosion-resistant, gold-plated ClickLoc connectors.These connectors require only finger-tight torque (the connectors will "click" when tight), and the specially-engineered locking mechanism prevents the connectors from loosening, these connectors require no special tools for installation or removal.



3300 XL 8 mm probes are designed to seal differential pressure between the probe tip and case. The probe sealing material consists

of a Viton® O ring.





Order information

Model 330103

300 XL 8 mm Probe, M10 x 1 thread,

without armor

Length configurations 00 0 in
Overall Case Length Option 12 1.2in
Total Length Option 05 0.5 meter (1.6 feet)
Connector and cable-type option 02 Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option 00 Not required





8 mm probes provide a thicker encapsulation of the probe coil in the molded PPS plastic probe tip, this results in a more rugged probe, the larger diameter of the probe body also provides a stronger, more robust case.
