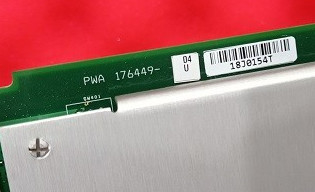

Bently Nevada 3500/45 176449-04 Position Monitor Accepts Input From Proximity Transducers

Bently Nevada 3500/45 176449-04 Position Monitor Accepts Input From Proximity Transducers

Product Details:

Description:

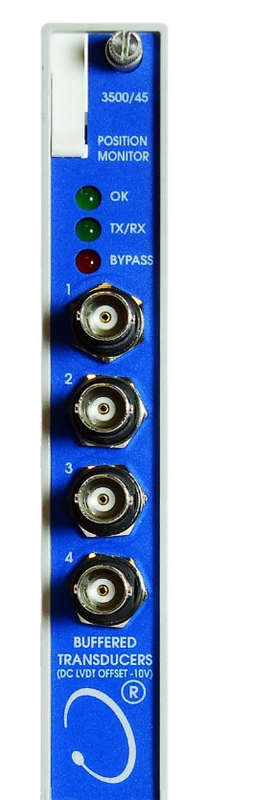

The 3500/45 Position Monitor is a 4-channel instrument that accepts input from proximity transducers, Rotary Position Transducers (RPTs), DC Linear Variable Differential Transformers (DC LVDTs), AC Linear Variable Differential Transformers (AC LVDTs), and rotary potentiometers. The monitor conditions the input and compares the conditioned signals with user-programmable alarms.

You can program each channel using the 3500 Rack Configuration Software to perform the following functions:

l Axial (thrust) Position

l Differential Expansion

l Standard Single Ramp Differential Expansion

l Non-standard Single Ramp Differential Expansion

l Dual Ramp Differential Expansion

l Complementary Differential Expansion l Case Expansion

l Valve Position

The primary purpose of the 3500/45 Position Monitor is to provide the following:

Machinery protection by continuously comparing monitored parameters against configured alarm setpoints to drive alarms

Essential machine information for operations and maintenance personnel

Each channel, depending on configuration, typically conditions its input signal to generate various parameters called measured variables. You can establish alert setpoints for each active measured variable and danger setpoints for any two of the active measured variables.

When adding the 3500/45 Position Monitor to an existing 3500 system, the following firmware and software versions or later are required:

3500/20 RIM Firmware rev. G

3500 Configuration Software 2.41

3500 Data Acquisition 2.20

3500 Operator Display 1.20

3500/93 Display Interface Module 135799- 01

Firmware rev. G

For Valve Position using RPT, you must have 3500 Configuration Software 3.00 or greater.
