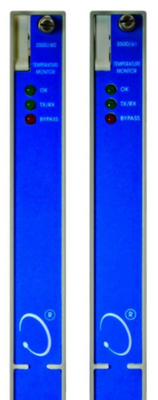

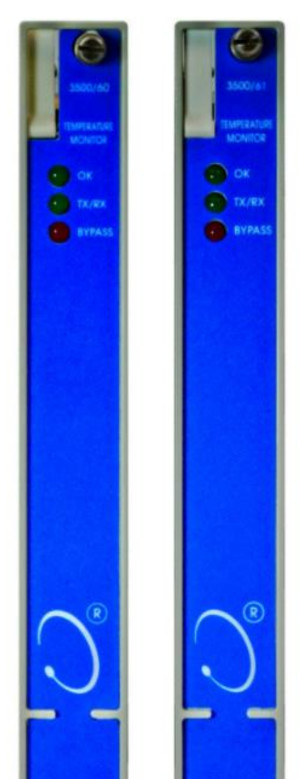

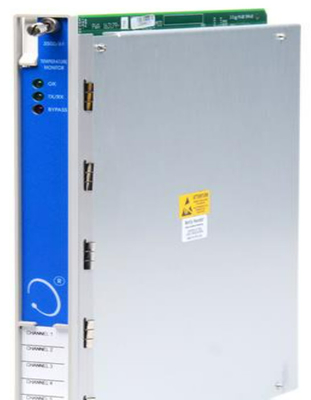

Bently Nevada 3500/61 133811-02 Temperature Modules Six Channels Of Temperature Monitoring

Bently Nevada 3500/61 133811-02 Temperature Modules Six Channels Of Temperature Monitoring

  • Bently Nevada 3500/61 133811-02 Temperature Modules Six Channels Of Temperature Monitoring
  • Bently Nevada 3500/61 133811-02 Temperature Modules Six Channels Of Temperature Monitoring
Bently Nevada 3500/61 133811-02 Temperature Modules Six Channels Of Temperature Monitoring
Product Details:
Place of Origin: USA
Brand Name: Bently Nevada
Certification: CO
Model Number: 3500/61 133811-02
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: inquiry
Packaging Details: original
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 10 Piece per a day
Contact Now
Detailed Product Description
Product Name: Bently Nevada 3500/61 133811-02 Temperature Modules Six Channels Of Temperature Monitoring Product Model: 3500/61 133811-02
Condition: In Stock Quality: New And Original
Market: Worldwide Market Material: Original
Lead Time: IN STOCK Shipping Terms: UPS / DHL / TNT / EMS / Fedex
Gross Weight: 1kg Packing Size: 6" X 4" X 2" (15 Cm X 10 Cm X 5 Cm)
Highlight:

133811-02 Temperature Modules

,

Six Channels Temperature Modules

,

Bently Nevada 3500/61 Temperature Modules

Bently Nevada 3500/61 133811-02 Temperature Modules Six Channels Of Temperature Monitoring





Product Details:



Brand Name Bently Nevada
Model 3500/61 133811-02
Condition New
Gross Weight/Shipping Weight 2.2 lbs / 35.2 oz / 1kg
Packing Size 6.4" x 6.4" x 4.8" (14cm x 10 cm x 6 cm)
Country of Origin/Original Country United States (USA)
Lead Time In Stock
Shipping Port Xiamen
Payment T/T
Sales Price Inquiry
Color Depend on product
Warranty 12 months
Lead time 5-8 work days
Courier partners DHL, UPS, TNT, FedEx and EMS





Additional Information:



N/M N/M





Description:



The 3500/60 & 61 modules provide six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. The modules condition these inputs and compare them against user-programmable alarm setpoints. The 3500/60 and 3500/61 provide identical functionality except that the 3500/61 provides recorder outputs for each of its six channels while the 3500/60 does not.



The user programs the modules to perform either RTD or TC temperature measurements using the 3500 Rack Configuration Software. Different I/O modules are available in RTD/TC non-isolated or TC isolated versions. The user can configure the RTD/TC non-isolated version to accept either TC or RTD, or a mixture of TC and RTD inputs. The TC isolated version provides 250 Vdc of channel-to-channel isolation to protect against external interference.



When used in a Triple Modular Redundant (TMR) configuration, temperature monitors must be installed adjacent to each other in groups of three. When used in this configuration, the system employs two types of voting to ensure accurate operation and to avoid single-point failures.



The user can set Alert and Danger setpoints for the value measured by the monitor using software configuration. Alarms are adjustable from 0 to 100% of full-scale for each measured value. The exception is when the full-scale range exceeds the range of the sensor. In this case, the range of the sensor will limit the setpoint. Accuracy of alarms are to within 0.13% of the desired value. The Temperature Monitors have both under and over alarm setpoints.



This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:



This device may not cause harmful interference.

This device must accept any interference received, including interference that may cause undesired operation.



Bently Nevada 3500/61 133811-02 Temperature Modules Six Channels Of Temperature Monitoring 0
