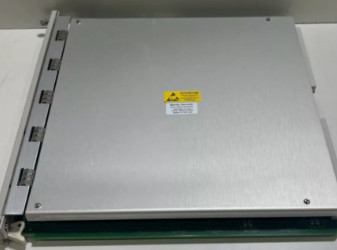

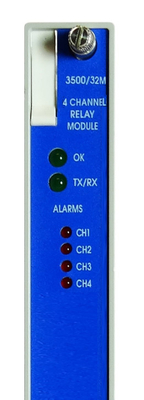

Bently Nevada 3500/32M 149986-02 4-Channel Relay Module In Stock

Bently Nevada 3500/32M 149986-02 4-Channel Relay Module In Stock

Product Details:

Additional Information:

Description:

The 4-Channel Relay Module is a full-height module that provides four relay outputs. Any number of 4-Channel Relay Modules can be placed in any of the slots to the right of the Transient Data Interface Module. Each output of the 4- Channel Relay Module can be independently programmed to perform voting logic.

Each relay utilized on the 4-Channel Relay Module includes Alarm Drive Logic.

Programming for the Alarm Drive Logic uses AND and OR logic, and can use alarming inputs (Alert and Danger statuses), Not- OK, or individual PPLs from any monitor channel or any combination of monitor channels in the rack. You can program this Alarm Drive to meet your application needs using the 3500 Rack Configuration Software.

The 3500/32M requires 3500 Rack Configuration software, version 4.5 or later.

The 3500/32M requires 3500 Data Acquisition software, version 2.40 or later.

The 3500/32M requires 3500 Data Display software, version 1.40 or later.

When used with a 3500/93 LCD Display module, the 3500/93 will require firmware revision P or later.

When used with a 3500/94 VGA Display module, the 3500/94 will require firmware revision C or later.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference.

This device must accept any interference received, including interference that may cause undesired operation.
