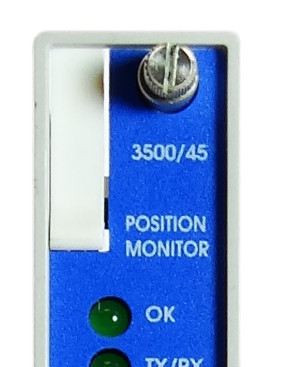

Bently Nevada 3500/45-01-00 176449-04 Position Monitor

Bently Nevada 3500/45-01-00 176449-04 Position Monitor

Product Details:

Additional Information:

Description:

The 3500/45 Position Monitor is a 4-channel instrument that accepts input from proximity transducers, Rotary Position Transducers (RPTs), DC Linear Variable Differential Transformers (DC LVDTs), AC Linear Variable Differential Transformers (AC LVDTs), and rotary potentiometers. The monitor conditions the input and compares the conditioned signals with user-programmable alarms.

Each channel, depending on configuration, typically conditions its input signal to generate various parameters called measured variables. You can establish alert setpoints for each active measured variable and danger setpoints for any two of the active measured variables.

When adding the 3500/45 Position Monitor to an existing 3500 system, the following firmware and software versions or later are required:

3500/20 RIM Firmware rev. G

3500 Configuration Software 2.41

3500 Data Acquisition 2.20

3500 Operator Display 1.20

3500/93 Display Interface Module 135799-01

Firmware rev. G

For Valve Position using RPT, you must have 3500 Configuration Software 3.00 or greater.

When using the 3500/45 Position Monitor in a TMR application, valve position measurement are not available, and case expansion measurements are only supported for Discrete TMR.
