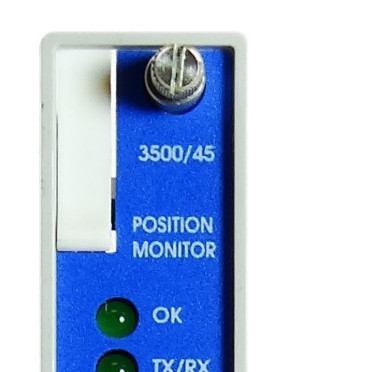

Bently Nevada 3500/45-01-00 140734-04 Position Monitor

Bently Nevada 3500/45-01-00 140734-04 Position Monitor

Product Details:

Additional Information:

Description:

The 3500/45 Position Monitor is a 4-channel instrument that accepts input from proximity transducers, Rotary Position Transducers (RPTs), DC Linear Variable Differential Transformers (DC LVDTs), AC Linear Variable Differential Transformers (AC LVDTs), and rotary potentiometers. The monitor conditions the input and compares the conditioned signals with user-programmable alarms.

You can program each channel using the 3500 Rack Configuration Software to perform the following functions:

Axial (thrust) Position

Differential Expansion

Standard Single Ramp Differential Expansion

Non-standard Single Ramp Differential Expansion

Dual Ramp Differential Expansion

Complementary Differential Expansion l Case Expansion

Valve Position

The primary purpose of the 3500/45 Position Monitor is to provide the following:

l Machinery protection by continuously comparing monitored parameters against configured alarm setpoints to drive alarms

l Essential machine information for operations and maintenance personnel

Each channel, depending on configuration, typically conditions its input signal to generate various parameters called measured variables. You can establish alert setpoints for each active measured variable and danger setpoints for any two of the active measured variables.
