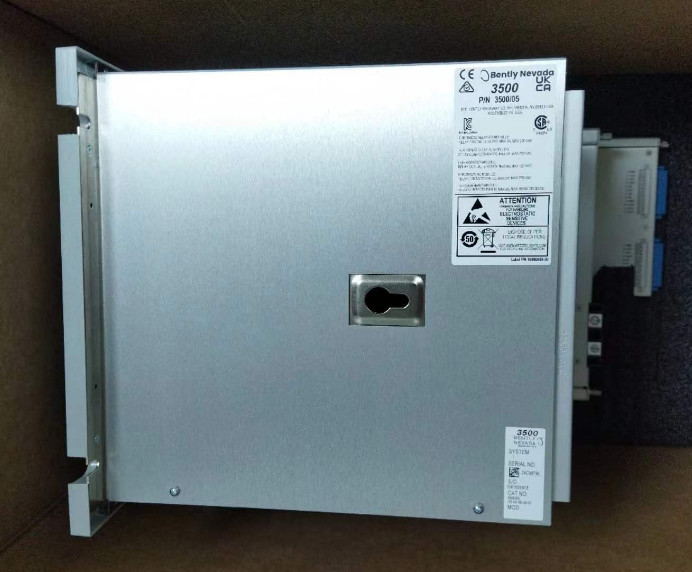

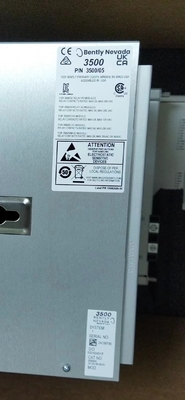

Bently Nevada 3500/05 System Rack Machinery Condition Monitoring

Bently Nevada 3500/05 System Rack Machinery Condition Monitoring

Product Details:

Additional Information:

Description:

The rack provides slots for two Power Supplies and a TDI in the left-most rack positions that are reserved exclusively for these modules. The remaining 14 slots in the rack can accommodate any combination of monitor, display, relay, Keyphasor module, and communication gateway modules. All modules plug into the rack’s backplane and consist of a main module and an associated I/O module.

The I/O module installs at the rear of the rack for panel-mount systems, and above the main module for bulkhead-mount systems. Standard rack depth is 349 mm (13.75 inches), while bulkhead mount rack depth is 267 mm (10.5 inches). NEMA 4 and 4X weatherproof housings are available when required for environmental protection or when purge air is used.

Use the 3500 System rack to mount all 3500 monitor modules and power supplies. The rack allows you to place 3500 modules near one another, enabling them to easily communicate, and to mount power supplies necessary to distribute power to each module.

This rack format mounts the rack against a wall or panel when it is not possible to access the rear of the rack. Wiring connections and I/O modules are accessible from the front of the rack.

The 3500/05 Mini-Rack is not available in this format. The power supplies and rack interface module must occupy the far-left rack positions. The remaining 14 rack positions (seven rack positions for the mini-rack) are available for any combination of modules.

Racks with Internal Barriers installed require a 3500/04-01 Internal Barrier Earthing Module to provide the IS Earth connection to the 3500/05 rack. This earthing module requires a dedicated rack position.
