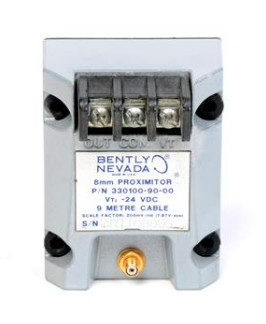

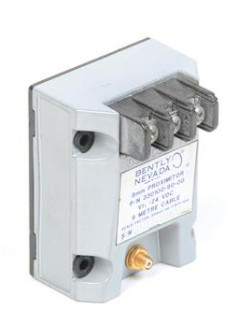

Bently Nevada 330100-90-00 3300 Proximity Transducer System Proximitor® Sensor

Bently Nevada 330100-90-00 3300 Proximity Transducer System Proximitor® Sensor

Product Details:

Additional Information:

Description:

The 3300 Proximitor® Sensor offers many improvements over previous

Bently Nevada eddy current transducers with better linearity and temperature stability. It also uses an integral isolation plate as its base, eliminating the need for separate isolator plates.

A 3300 XL Proximitor Sensor is available and provides numerous improvements over the non-XL version. It is electrically and mechanically interchangeable with the non-XL version, and is recommended as best available technology for most applications.

Although the packaging of the 3300 XL Proximitor sensor differs fromits predecessor, it is designed to fit in the same 4-hole mounting pattern when used with the 4-hole mounting base, and will fit within the same mounting space specifications (when minimum permissible cable bend radius is observed)

Option Descriptions:

330100-AXX-BXX

A Total Length                      5 0 5.0 metres (16.4 feet)

   Option                               9 0 9.0 metres (29.5 feet)

B Agency Approval              0 0 Not required

   Option                               0 5 Multiple Approvals

Proximitor® Sensors are supplied by default from the factory calibrated

to AISI 4140 steel. Calibration to other target materials is available

upon request
