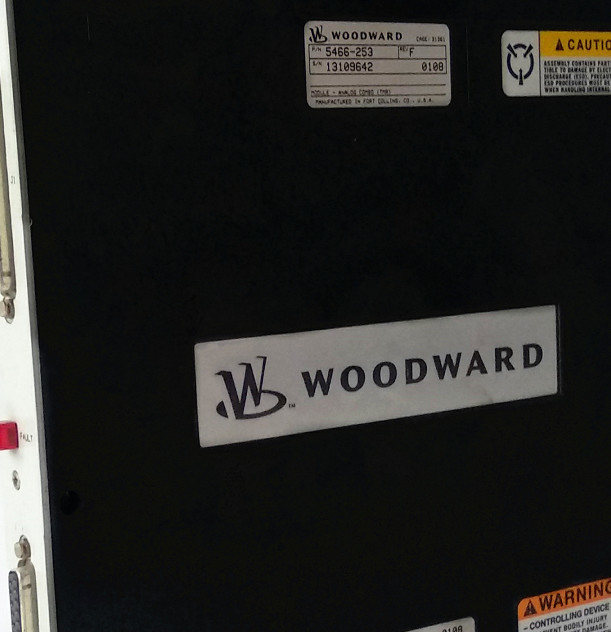

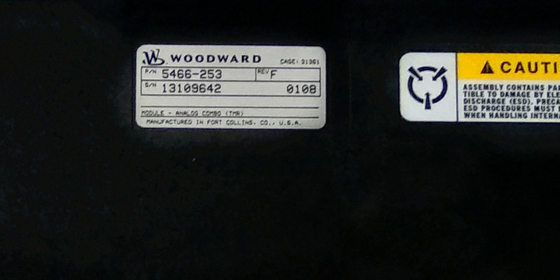

Woodward 5466-253 Analog Combo Module Input/Output Module in stock

Woodward 5466-253 Analog Combo Module Input/Output Module in stock

Product Details:

Additional Information:

Description:

The MicroNet 5466-253 and 5466-316 HDCombo modules were first introduced in 1997 for the Steam Controls market. This module includes a combination of eight Analog Inputs, four Analog Outputs, four Speed Inputs, and two Proportional Actuator Outputs. The -253 version has an ideal combination of I/O for TMR and 5009 systems controlling valves with proportional actuators. Woodward’s newer Speed/Analog combination module (5466-1115) lacks the on-board proportional actuator capability of the older HDCombo modules, requiring the addition of separate Two-Channel Actuator modules.

This consumes valuable I/O space in the main TMR chassis. Since 2016, Woodward has been providing HDCombo modules primarily for spare parts and system upgrades, and has pushed steam and compressor customers to use the 5466-1115 along with supplementary 2CH Actuator control modules. Woodward’s 5009 standard steam turbine control was also changed to utilize the newer combo modules.

The standard 5009XT Steam Turbine Controls will be changed over to use the 5466-253 HDCombo module in place of the 5466-1115 Combo module starting in late 2020. Custom programmed MicroNet TMR systems can use either configuration. Woodward recommends using 5466-253 on TMR systems if the turbine uses proportional actuators, and using 5466-1115 if the turbine uses integrating actuators or a separate servo controller such as an SPC. The 5466-316 can be used on retrofit systems needing the specific I/O and FTM offered by this module.

The 5466-253 module provides precise speed control functionality, allowing for accurate regulation of rotational speed in industrial machinery and equipment. It ensures optimal performance and stability by maintaining the desired speed setpoints.

The module supports a wide range of speed control, accommodating different operating speeds required by various industrial applications. It allows for precise control over a broad spectrum of rotational speeds, ensuring compatibility with diverse machinery and equipment.

The module is designed for easy installation and configuration, simplifying the integration process into existing control systems. It offers user-friendly interfaces and intuitive configuration options, reducing setup time and effort.

The 5466-253 module incorporates safety features to protect machinery and equipment from damage or unsafe operating conditions. It includes safeguards such as over-speed protection and fault detection, ensuring safe and reliable operation.
