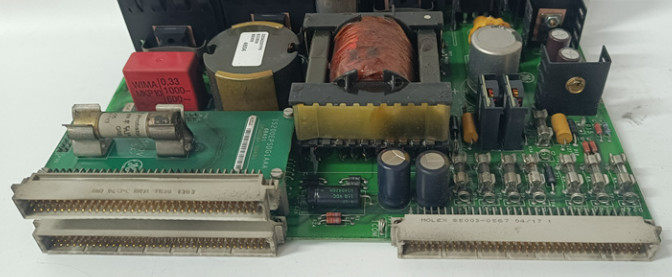

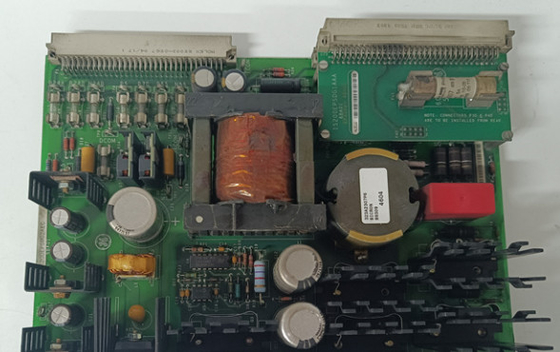

GE IS200EPSMG2AEC Mark VI IS200 GE Fanuc Module

GE IS200EPSMG2AEC Mark VI IS200 GE Fanuc Module

Product Details:

Additional Information:

Description:

The IS200EPSMG2AEC module serves as a power supply unit, delivering consistent and reliable power to connected devices and systems. It converts the incoming power from the source into the appropriate voltage and current levels required by the equipment.

The module is designed for high efficiency and stability in power conversion. It minimizes power losses and ensures a stable output voltage, reducing energy waste and maintaining optimal performance for connected equipment.

The module incorporates overload and short circuit protection features to safeguard connected devices from excessive current or electrical faults. It can detect and respond to overloads or short circuits, preventing damage to the module and connected equipment.

The module is designed for easy installation and configuration, simplifying the integration process into existing electrical systems. It offers user-friendly interfaces and intuitive configuration options, minimizing setup time and effort.

The module includes diagnostic and monitoring features to track the performance of the power supply. It can provide real-time data on voltage and current levels, allowing operators to monitor the health and status of the power supply module.

Flame Detection: The existence of flame can either be calculated from turbine parameters that are already being monitored or from a direct interface to Reuter Stokes or Honeywell type flame detectors. These detectors monitor the flame in the combustion chamber by detecting UV radiation emitted by the flame. The Reuter Stokes detectors produce a 4-20 mA input. For Honeywell flame scanners, the Mark VI supplies the 335 V dc excitation and the VTUR / TRPG monitors the pulses of current being generated to determine if carbon buildup or other contaminates on the scanner window are causing reduced light detection.

Servo Valve Interface: A VSVO board provides four servo channels with selectable current drivers, feedback from LVDTs, LVDRs, or ratio metric LVDTs, and pulse rate inputs from flow divider feedback used on some liquid fuel systems. In TMR applications, three coil servos are commonly used to extend the voting of analog outs to the servo coils. Two coil servos can also be used. One, two, or three LVDT/Rs feedback sensors can be used per servo channel by selecting low, medium, or high in the software.
