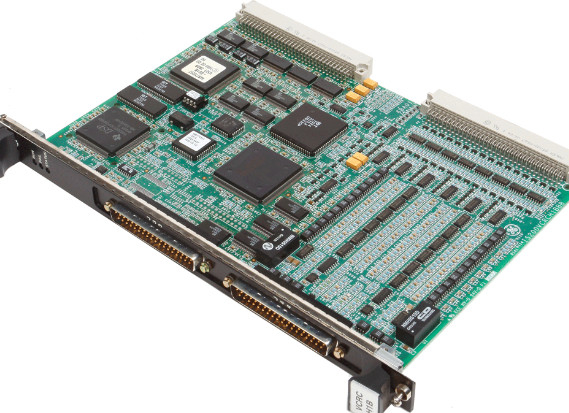

GE IS215VAMBH1A Mark VI IS200 PCB component Acoustic Monitoring board

GE IS215VAMBH1A Mark VI IS200 PCB component Acoustic Monitoring board

Product Details:

Additional Information:

Description:

The UDH communication driver is located on the main processor board in a Mark VI control module. This is the same board that runs the turbine application software. Therefore there are no potential communication failure points between the main turbine processor and other controls or monitoring systems on the UDH. In TMR systems, there are three separate processor boards executing identical application software from identical databases. Two UDH drivers are normally connected to one switch, and the other UDH driver is connected to the other switch in a star configuration.

Time synchronization is available to synchronize all controls and HMIs on the UDH to a Global Time Source (GTS). Typical GTSs are Global Positioning Satellite (GPS) receivers such as the StarTime GPS Clock or other time processing hardware. The preferred time sources are Universal Time Coordinated (UTC) or GPS; however, the time synchronization option also supports a GTS using local time as its base time reference. The GTS supplies a time link network to one or more HMI’s with a time/frequency processor board. When the HMI receives the time signal, it is sent to the Mark VI(s) using Network Time Protocol (NTP) which synchronizes the units to within ±1 ms time coherence.

The IS215VAMBH1A module typically offers multiple analog input channels, allowing it to receive analog signals from various sources such as sensors, transmitters, or other devices. These inputs can measure voltage, current, temperature, or other analog quantities.

The module may feature built-in signal conditioning capabilities to ensure accurate and reliable measurement and generation of analog signals. This can include amplification, filtering, or linearization of the input/output signals.

The module is designed for easy installation and integration into standard racks or cabinets. It may feature connectors or terminals for efficient wiring and connection with other devices.
