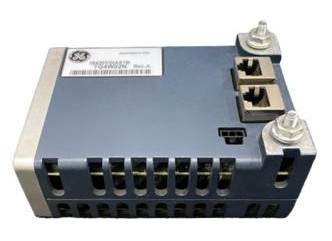

GE IS420YDIAS1B Mark VIe Analog I/O Pack GE Distributed Control Systems GE Control Module

GE IS420YDIAS1B GE Mark VIe Analog I/O Pack GE Distributed Control Systems GE Control Module

Product Details:

Additional Information:

Description:

Analog I/O modules typically contain 10 analog inputs and 2 analog outputs. 8 inputs can be configured for 1-5Vdc, ±5Vdc, ±10Vdc, or 0-20ma with jumpers on the module, and the remaining 2 inputs can be configured for 0-20ma or +/-1ma with 250 Ω / 5,000 Ω burden resistors respectively.

For applications with a high concentration of analog outputs, dedicated output modules are available for 0-20ma and others for 0-20ma / 0-200ma selection for valve actuators (800 Ω / 50 Ω output loads respectively). Transducers can be externally powered (differential inputs) or internally powered from the I/O module with +24Vdc current limited per point. I/O modules are available with point isolation for externally powered transducers.

Multiple Input Channels: The module is equipped with multiple input channels, offering connectivity options for monitoring multiple digital signals simultaneously. It can monitor several discrete events or states concurrently, providing comprehensive data for effective control and system monitoring.

Communication Interfaces: The module offers communication interfaces for seamless integration with supervisory control and data acquisition (SCADA) systems or other control networks. It supports industry-standard protocols, enabling easy data exchange and remote monitoring or control of connected equipment.

This board is used for simplex, dual, and dedicated triple modular redundant (TMR) inputs by using one, two, or three boards. They are half the size of T-type modules and are DIN-rail or surface mounted. Two versions of the S-type modules are available: fixed terminal blocks and removable terminal blocks.
