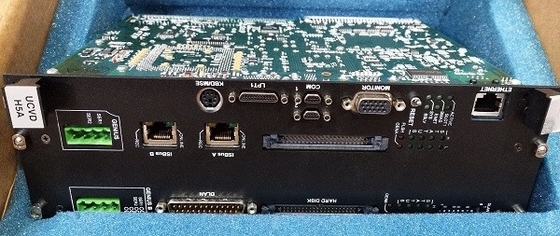

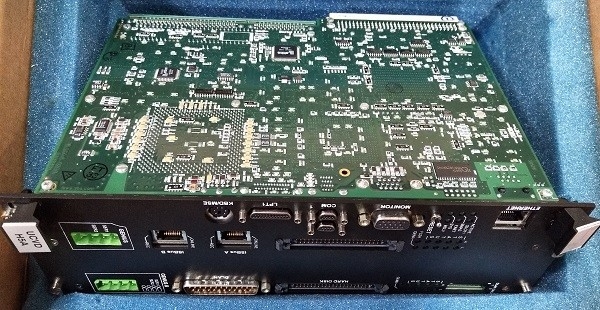

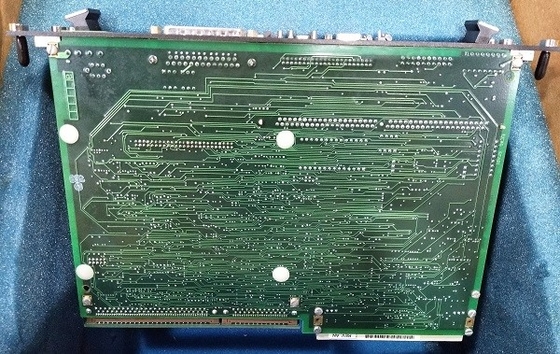

GE IS215UCVDH5A VME Assembly Board Mark VI For VME Rack Of The Control Module

GE IS215UCVDH5A VME Assembly Board Mark VI Designed to Mount In The VME Rack of The Control Module

Product Details:

Additional Information:

Description:

The Mark VIe I/O modules consist of three basic parts: the terminal board, the terminal block, and an I/O pack. Barrier or box-type terminal blocks are mounted on a terminal board, which mounts on a DIN rail or base in the control cabinet. The I/O pack contains two Ethernet ports, a power supply, a local processor, and a data acquisition board. I/O capability grows as I/O packs are added to the control system, enabling use in a simplex, dual, or triple redundant configuration. Some process sub-systems require even more throughput; therefore, the local processors in each I/O pack run algorithms at higher rates as required for the application.

The SPEEDTRONIC™ Mark VI turbine control is the current state-of-the-art control for GE turbines that have a heritage of more than 30 years of successful operation. It is designed as a complete integrated control, protection, and monitoring system for generator and mechanical drive applications of gas and steam turbines. It is also an ideal platform for integrating all power island and balance-of-plant controls. Hardware and software are designed with close coordination between GE’s turbine design engineering and controls engineering to insure that your control system provides the optimum turbine performance and you receive a true “system” solution. With Mark VI, you receive the benefits of GE’s unmatched experience with an advanced turbine control platform.

The heart of the control system is the Control Module, which is available in either a 13- or 21- slot standard VME card rack. Inputs are received by the Control Module through termination boards with either barrier or box-type terminal blocks and passive signal conditioning. Each I/O card contains a TMS320C32 DSP processor to digitally filter the data before conversion to 32 bit IEEE-854 floating point format. The data is then placed in dual port memory that is accessible by the on-board C32 DSP on one side and the VME bus on the other.

The module supports a wide input voltage range, accommodating different voltage levels required by various control systems and devices. It can handle a range of input voltages, ensuring compatibility and flexibility in diverse industrial environments.
