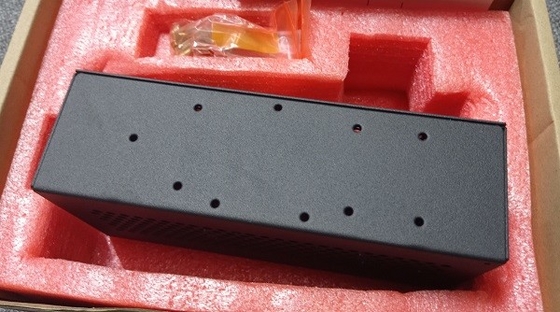

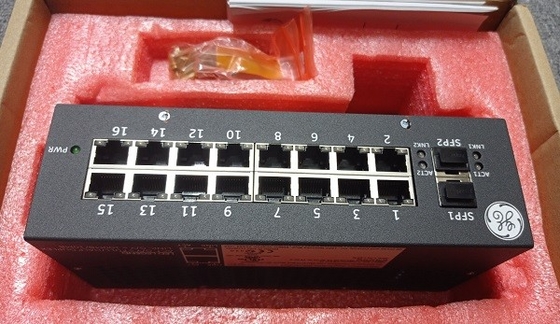

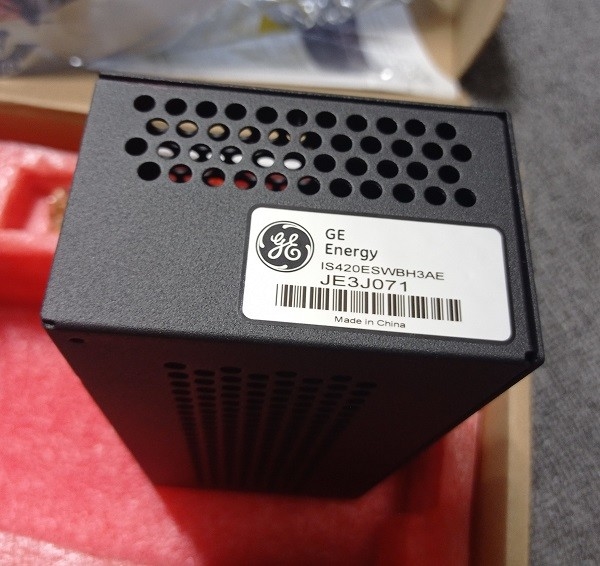

GE IS420ESWBH3A I/O Pack Mark VIeS Industrial Ethernet Switch GE Fanuc Module

GE IS420ESWBH3A I/O Pack Mark VIeS Industrial Ethernet Switch GE Fanuc Module

Product Details:

Additional Information:

Description:

The Trender tool is used to capture and display graphs of variables in real time from controllers and other sources. High-speed time-coherent data can be collected from the Mark VIe, Mark Ve, Mark VI, EX2100e, and LS2100e controllers at their execution rate (frame rate) with sub-millisecond resolution from power converters. Data sets may also be received through OPC HDA from a Historian such as PI Server™, OPC-DA servers, or static files stored on a hard disk in the following form: data collection and analysis (. dcaST), comma separated value (.csv), COMTRADE, and Control System Solutions (toolbox) Trend Recorder (.trn).

Software blocks can be selected from application-specific libraries and displayed with their dynamic values, variable names, or pin connections. Users can toggle between these three modes as needed. If inputs and outputs are not used in the configured mode, they are hidden on large blocks to reduce information clutter. These wires can be changed using the drag-and-drop operation to move a wire to a point on another block. The block diagram display ensures that the new wiring / programming will be changed correctly (going to the intended point).

The animation of the wiring between blocks and the functional representation of the blocks helps users to understand their current effect on the process. Line patterns signify analog versus Boolean data. Line colors indicate good versus bad data quality, and forced versus unforced data.

The module features programmable logic capabilities, enabling the customization of control actions based on specific speed conditions. It can be programmed to initiate safety shutdowns, activate warning signals, or perform other predefined actions to ensure operational safety and efficiency.

The module features a user-friendly interface that simplifies configuration, monitoring, and diagnostics. It provides intuitive controls, clear indicators, and graphical displays, facilitating easy operation and enabling operators to efficiently manage speed monitoring and control.
