| Place of Origin: | China |
| Brand Name: | Other Brands |
| Certification: | CO |
| Model Number: | EA403 913-403-000-012 |
| Minimum Order Quantity: | 1EA |
|---|---|
| Price: | 900USD |
| Packaging Details: | Original |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10EA |
| Brand Name: | Other Brands | Product Model: | EA403 |
|---|---|---|---|
| Part Number: | 913-403-000-012 | Packing: | Original |
| Warranty: | 1 Year | Lead Time: | In Stock |
| Highlight: | EA403 913-403-000-012,EA403 Proximity Measurement System,913-403-000-012 Proximity Measurement System |
||
EA403 913-403-000-012 Proximity Measurement System Allows Contactless Measurement of The Relative Displacement
Product Details:
| Brand Name | Others |
| Model | EA403 |
| Ordering information | 913-403-000-012 |
| Condition | New |
| Gross Weight/Shipping Weight | 2.2 lbs / 35.2 oz / 1kg |
| Packing Size | 6.4" x 6.4" x 4.8" (16cm x 16 cm x 12 cm) |
| Country of Origin/Original Country | China |
| Lead Time | In Stock |
| Shipping Port | Xiamen |
| Payment | T/T |
| Sales Price | Inquiry |
| Color | Depends on material |
| Warranty | 12 months |
| Lead time | 5-8 work days |
| Courier partners | DHL, UPS, TNT, FedEx and EMS |
Additional Information:
| N/M | N/M |
Description:
The system is based around a TQ403 non-contact sensor and an IQS450 signal conditioner. Together, these form a calibrated proximity measurement system in which each component is interchangeable. The system outputs a voltage or a current proportional to the distance between the transducer tip and the target, such as a machine shaft.
The active part of the transducer is a coil of wire that is moulded inside the tip of the device, made of (polyamide-imide). The transducer body is made of stainless steel. The target material must, in all cases, be metallic.
The transducer body is available only with metric thread. The TQ403 has an integral coaxial cable, terminated with a self-locking miniature coaxial connector. Various cable lengths (integral and extension) can be ordered.

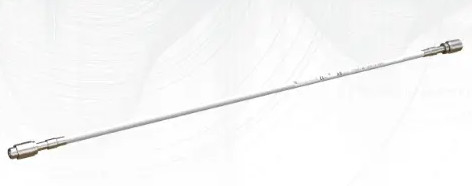

The TQ403 transducer can be matched with a single EA403 extension cable to effectively lengthen the front-end. Optional housings, junction boxes and interconnection protectors are available for the mechanical and environmental protection of the connection between the integral and extension cables.
TQ4xx-based proximity measurement systems can be powered by associated machinery monitoring systems such as modules (cards) or modules, or by another power supply.
The IQS450 signal conditioner contains a highfrequency modulator/demodulator that supplies a driving signal to the transducer. This generates the necessary electromagnetic field used to measure the gap. The conditioner circuitry is made of high-quality components and is mounted in an aluminium extrusion.
