RPS6U 200-582-200-021 Rack Power Supplies For Machinery Protection Systems

RPS6U 200-582-200-021 Rack Power Supplies Use In the Machinery Protection Systems and Performance Monitoring Systems

Product Details:

Additional Information:

Description:

The RPS6U rack power supplies are designed for use in the series of machinery protection systems and condition and performance monitoring systems.

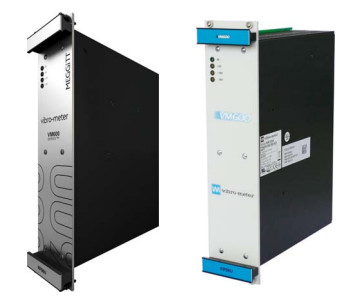

A RPS6U rack power supply is installed in the front of a ABE04x system rack (19″ system racks with a standard height of 6U) and connects via two high-current connectors to the bus of the rack’s backplane. The RPS6U power supply provides +5 VDC and ±12 VDC to the rack itself and all installed modules (cards) in the rack via the rack’s backplane.

Alternatively, a rack can have two RPS6U power supplies installed in order to either support rack power supply redundancy or in order to supply power to the modules (cards) non-redundantly over a wider range of environmental conditions.

A ABE04x system rack with two RPS6U power supplies installed can operate redundantly (that is, with rack power supply redundancy) for a full rack of modules (cards). This means that if one RPS6U fails, the other will provide 100% of the rack’s power requirement so that the rack will continue to operate, thereby increasing the availability of the machinery monitoring system.

A power supply check relay, available on the associated rear panel at the rear of a ABE04x system rack, is used to indicate that the RPS6U power supplies are operating normally. Refer to the ABE04x system rack data sheet for further information.

In applications where the ABE04x system rack is powered by an AC mains supply, a ASPS auxiliary sensor power supply can also be included in the rack. The ASPS provides +24 VDC outputs which can be used by external sensor/measurement chain hardware such as front-end sensors, signal conditioners and galvanic separation units.
