IPC704 244-704-000-042 Signal Conditioner For Sensors Standard Piezoelectric Materials

IPC704 244-704-000-042 Signal Conditioner For Sensors Standard Piezoelectric Materials

  • IPC704 244-704-000-042 Signal Conditioner For Sensors Standard Piezoelectric Materials
  • IPC704 244-704-000-042 Signal Conditioner For Sensors Standard Piezoelectric Materials
IPC704 244-704-000-042 Signal Conditioner For Sensors Standard Piezoelectric Materials
Product Details:
Place of Origin: China
Brand Name: Other Brands
Certification: CO
Model Number: IPC704 244-704-000-042
Payment & Shipping Terms:
Minimum Order Quantity: 1EA
Price: 900USD
Packaging Details: Original
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 10EA
Contact Now
Detailed Product Description
Brand Name: Other Brands Product Model: IPC704
Part Number: 244-704-000-042 Packing: Original
Warranty: 1 Year Lead Time: In Stock
High Light:

IPC704 244-704-000-042

,

IPC704 Signal Conditioner

,

Piezoelectric Materials Signal Conditioner

IPC704 244-704-000-042 Signal Conditioner for Sensors Using Standard Piezoelectric Materials





Product Details:



Brand Name Others
Model IPC704
Ordering information 244-704-000-042
Condition New
Gross Weight/Shipping Weight 2.2 lbs / 35.2 oz / 1kg
Packing Size 6.4" x 6.4" x 4.8" (16cm x 16 cm x 12 cm)
Country of Origin/Original Country China
Lead Time In Stock
Shipping Port Xiamen
Payment T/T
Sales Price Inquiry
Color Depends on material
Warranty 12 months
Lead time 5-8 work days
Courier partners DHL, UPS, TNT, FedEx and EMS




Additional Information:



Temperature

Operation −30 to +85 °C
Storage −40 to +85 °C
Humidity Max. 95 % non-condensing. Note: For operation in a humid environment, ordering option A3 (potted version) should be considered.
Protection rating (according to IEC 60529) IP40
Vibration (according to IEC 60068-2-26) 2 g peak between 10 and 500 Hz
Shock acceleration (according to IEC 60068-2-27) 15 g peak (half-sine, 11 ms duration)




Description:

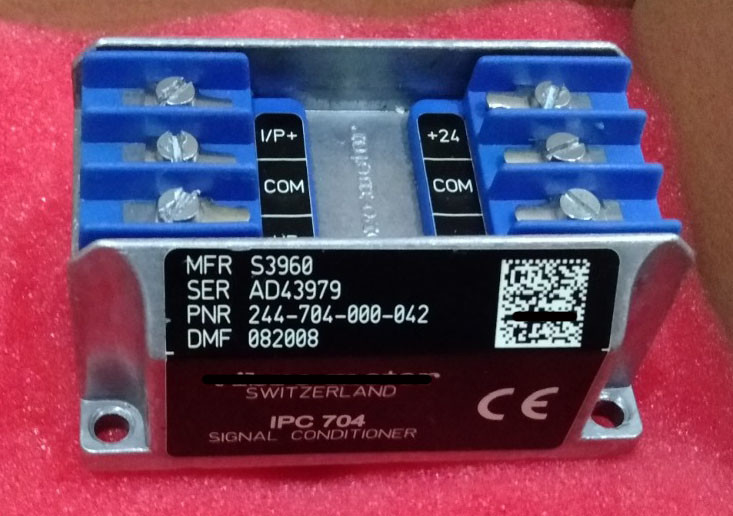

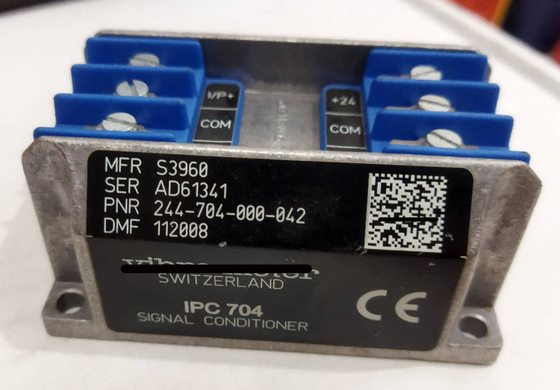

The IPC 704 signal conditioner converts the chargebased signal from a piezoelectric-based transducer into a current or a voltage signal.



This current or voltage signal is transmitted to the processing electronics via a standard 2-wire or 3-wire transmission cable. The current modulation technique allows transmission over a distance of up to 1 km. A GSI galvanic separation unit is required for this configuration.



The electronic circuitry of the IPC 704 signal conditioner is incorporated into a moulded aluminium enclosure. The signal conditioner has configurable high-pass and low-pass filters and an optional integrator to give a velocity output. Furthermore, RFI filters protect the input and output against radiofrequency interference and other electromagnetic influences.
