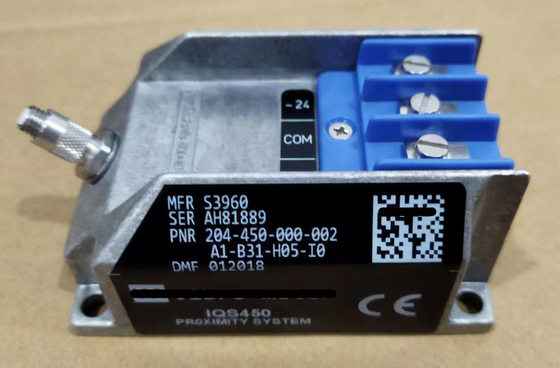

IQS450 204-450-000-001 Signal Conditioner Proximity Measurement System

IQS450 204-450-000-001 Signal Conditioner Proximity Measurement System

  • IQS450 204-450-000-001 Signal Conditioner Proximity Measurement System
  • IQS450 204-450-000-001 Signal Conditioner Proximity Measurement System
IQS450 204-450-000-001 Signal Conditioner Proximity Measurement System
Product Details:
Place of Origin: China
Brand Name: Other Brands
Certification: CO
Model Number: IQS450 204-450-000-001
Payment & Shipping Terms:
Minimum Order Quantity: 1EA
Price: 900USD
Packaging Details: Original
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 10EA
Contact Now
Detailed Product Description
Brand Name: Other Brands Product Model: IQS450
Part Number: 204-450-000-001 Packing: Original
Warranty: 1 Year Lead Time: In Stock
High Light:

IQS450 204-450-000-001

,

IQS450 Proximity Measurement System

,

204-450-000-001 Proximity Measurement System

IQS450 204-450-000-001 Signal Conditioner Proximity Measurement System





Product Details:



Brand Name Others
Model IQS450
Ordering information 204-450-000-001
Condition New
Gross Weight/Shipping Weight 2.2 lbs / 35.2 oz / 1kg
Packing Size 6.4" x 6.4" x 4.8" (16cm x 16 cm x 12 cm)
Country of Origin/Original Country China
Lead Time In Stock
Shipping Port Xiamen
Payment T/T
Sales Price Inquiry
Color Depends on material
Warranty 12 months
Lead time 5-8 work days
Courier partners DHL, UPS, TNT, FedEx and EMS




Additional Information:



Temperature range Operation -30°C to +85°C *
Temperature range Storage -40°C to +85°C
Humidity Operation and storage Max. 95% non condensing
Vibration Operation and storage 2 g peak between 10 Hz and 500 Hz
Protection class IP 40




Description:



The IQS 450 signal conditioner will operate at ambient temperatures as high as 85°C, but to do so,it requires derating of the max. input voltage. The IQS 450 must operate between the min. Supply voltage and the max. supply voltage, as shown on the following graph.



This proximity measurement system allows contactless measurement of the relative displacement of moving machine elements.



The system is based around a TQ403 non-contact sensor and an IQS450 signal conditioner. Together, these form a calibrated proximity measurement system in which each component is interchangeable. The system outputs a voltage or a current proportional to the distance between the transducer tip and the target, such as a machine shaft.



The active part of the transducer is a coil of wire that is moulded inside the tip of the device. The transducer body is made of stainless steel. The target material must, in all cases, be metallic.



Voltage output, 3-wire configuration

• Voltage at min. GAP : -1.6 V

• Voltage at max. GAP : -17.6 V

• Dynamic range : 16 V

• Output impedance : 500 Ω

• Short-circuit current : 45 mA

Current output, 2-wire configuration

• Current at min. GAP : 15.5 mA

• Current at max. GAP : 20.5 mA

• Dynamic range : 5 mA

Output capacitance : 1 nF

Output inductance : 100 μH
