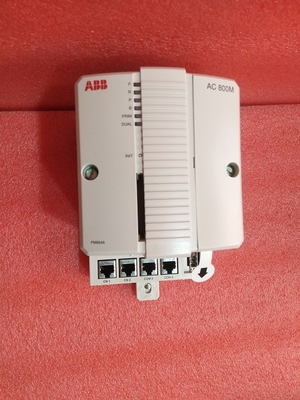

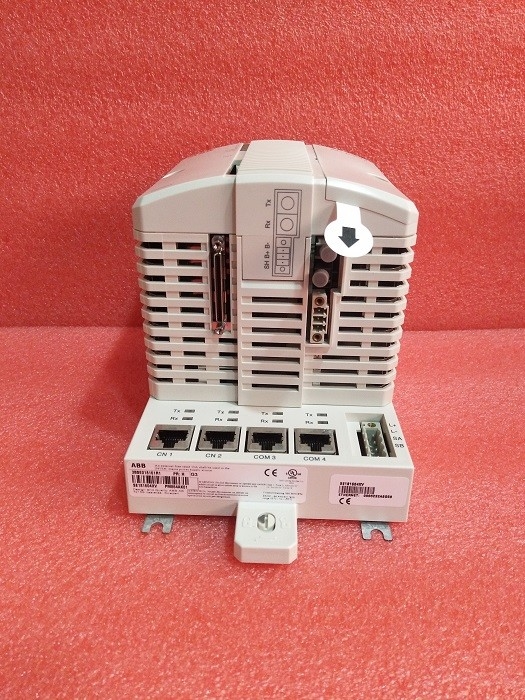

PM864AK01 ABB PLC Controller Processor Unit CPU S800 I/O 3BSE018161R1

PM864AK01 ABB PLC Controller Processor Unit CPU S800 I/O 3BSE018161R1

  • PM864AK01 ABB PLC Controller Processor Unit CPU S800 I/O 3BSE018161R1
  • PM864AK01 ABB PLC Controller Processor Unit CPU S800 I/O 3BSE018161R1
PM864AK01 ABB PLC Controller Processor Unit CPU S800 I/O 3BSE018161R1
Product Details:
Place of Origin: Estonia
Brand Name: ABB
Certification: CO
Model Number: PM864AK01
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: inquiry
Packaging Details: original
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 10 Piece per a day
Contact Now
Detailed Product Description
Name: ABB Power Module Model: PM864AK01
Package: STANDARD Warranty: 12 Months
Gross Weight: 2.2 Lbs / 35.2 Oz / 1kg Packing Size: 7" X 7" X 4" (18 Cm X 18 Cm X 10 Cm)
Lead Time: 1~3 Days Quality: 100%Brand
Product Name: Programmable Logic Controller Stock: Available
High Light:

PM864AK01 ABB PLC Unit

,

3BSE018161R1 ABB PLC Unit

,

CPU S800 I/O ABB Module

PM864AK01 ABB PLC Controller Processor Unit CPU S800 I/O 3BSE018161R1





Product Details:

Brand Name ABB
Model PM864AK01
Product ID 3BSE018161R1
Condition New
Gross Weight 2.2 lbs / 35.2 oz / 1kg
Packing Size 7" x 7" x 4" (18 cm x 18 cm x 10 cm)
Country of Origin Estonia
Lead Time In Stock
Shipping Port Xiamen
Payment T/T
Sales Price Inquiry
Color Depends on material
Warranty 12 months
Lead time 5-8 work days
Courier partners DHL, UPS, TNT, FedEx and EMS



Additional Information:

Processor type MPC862
Switch over time in red. conf. max 10 ms
No. of applications per controller 32
No. of programs per application 64
No. of diagrams per application 128
No. of tasks per controller 32
Number of different cycle times 32
Cycle time per application programs Down to 1 ms
Flash PROM for firmware storage 2 MB
Power supply 24 V DC (19.2-30 V DC)
Power consumption +24 V typ/max 287/487 mA
Power dissipation typ. 6.9 W (11.4 W max)
Redundant power supply status input Yes
Built-in back-up battery Lithium, 3.6 V
Clock synchronization 1 ms between AC 800M controllers by CNCP protocol
Event queue in controller per OPC client Up to 3000 events
AC 800M transm. speed to OPC server 36-86 events/sec ,113-143 data messages/sec
Comm. modules on CEX bus 12
Supply current on CEX bus Max 2.4 A
I/O clusters on Modulebus with non-red. CPU 1 electrical + 7 optical
I/O clusters on Modulebus with red. CPU 0 eletrical + 7 optical
I/O capacity on Modulebus Max 96 (single PM864A) or 84 (red. PM864A) I/O modules
Modulebus scan rate 0 - 100 ms (actual time depending on number of I/O modules)
Supply current on Electrical Modulebus 24 V : max 1.0 A
5 V : max 1.5 A
Ethernet channels 2
Ethernet interface Ethernet (IEEE 802.3), 10 Mbit/s, RJ-45, female (8-pole)
Control Network protocol MMS (Manufacturing Message Service) and IAC (Inter Application Communication)
Recommended Control Network backbone 100 Mbit/s switched Ethernet
Real-time clock stability 100 ppm (approx. 1 h/year)
RS-232C interface 2 (one general, 1 for service tool)
RS-232C interface (COM3) (non red. only) 75-19 200 baud, RJ-45 female (8-pole), not opto isolated, full RTS-CTS support Not
RS-232C interface (COM4) (non red. only) 9 600 baud, RJ-45 female (8-pole), opto isolated, no RTS-CTS support
Temperature, Operating +5 to +55 °C (+41 to +131 °F)
Temperature, Storage -40 to +70 °C (-40 to +158 °F)
Temperature changes 3 °C/minutes according to IEC/EN 61131-2
Pollution degree Degree 2 according to IEC/EN 61131-2
Corrosion protection G3 compliant to ISA 71.04
Relative humidity 5 to 95 %, non-condensing
Emitted noise < 55 dB
Vibration 10 < f < 50 Hz: 0.0375 mm amplitude,
50 < f < 150 Hz: 0.5 g acceleration,
5 < f < 500 Hz: 0.2 g acceleration
Rated Isolation Voltage 500 V a.c.
Dielectric test voltage 50 V
Protection class IP20 according to EN 60529, IEC 529
Altitude 2000 m according to IEC/EN 61131-2
Emission & Immunity EN 61000-6-4, EN 61000-6-2
Environmental conditions Industrial
CE Mark Yes
Electrical Safety EN 50178, IEC 61131-2, UL 508
Hazardous location UL 60079-15
Marine certificates ABS,BV,DNV-GL,LR (PM864AK01, PM864AK02)
TUV Approval No
RoHS compliance -
WEEE compliance DIRECTIVE/2012/19/EU

The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface.

The base plate of the PM864A controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool. The controller supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O).

Simple DIN rail attachment / detachment procedures, using the unique slide & lock mechanism. All base plates are provided with a unique Ethernet address which provides every CPU with a hardware identity. The address can be found on the Ethernet address label attached to the TP830 base plate.

Features and benefits

  • Reliability and simple fault diagnosis procedures
  • Modularity, allowing for step-by-step expansion
  • IP20 Class protection without the requirement for enclosures
  • The controller can be configured with 800xA control builder
  • The controller has full EMC certification
  • Sectioned CEX-Bus using a pair of BC810
  • Hardware based on standards for optimum communication connectivity (Ethernet, PROFIBUS DP, etc.)
  • Built-in redundant Ethernet Communication ports



Our Other Products Include:

ABB: 07AI91 07AC91 07KT97 AI880A CI840A DI810 DO810 EI803F IMDSI02 PM152 PM861AK01 SD823 etc.

ICS: T8191 T8403 T8311 T8431 T8461 T8800 T8110B T8293 T8830 T8846 T8850 etc.

Allen-bradley: 1746-IB16 1746-N2 1746-NT4 1746-OB16 1746-OV16 1747-M11 1756-N2 1794-IB16 etc.
GE: IC660BBD120 IC670ALG630 IC670MDL241 IC670MDL740 IC693MDL645 IC697BEM731 IC660BBD020 etc.
Schneider: 140CHS11000 140DDI85300 140XTS00200 140NRP95400 416NHM30030A etc.
Yokogawa: AAI143-S00 AAI543-S00 AAM21-S2 VI702 AAM21-S2 ADV551-P00 ADV151-P00 PW482-10 etc.
Bently Nevada: 125720-01 125760-01 125840-01 128229-01 138708-01 146031-01 330180-50-00 etc.
EPRO: CON 041 PR6423/002-030 MMS6312 CON 021 PR6423/000-000 MMS6110 PR6423/000-030 etc.
Bachmann: CM202 DIO248 EM203 FM211 LM201 MX213 NT255 RS204 DO232 AIO288 etc.
Emerson: KJ3203X1-BA1 KJ3221X1-BA1 KJ3222X1-BA1 A6120 KJ2003X1-BA2 KJ4001X1-CA1 KJ4001X1-CJ1 KJ2201X1-HA1 etc.

And other products with mass inventory!!!
