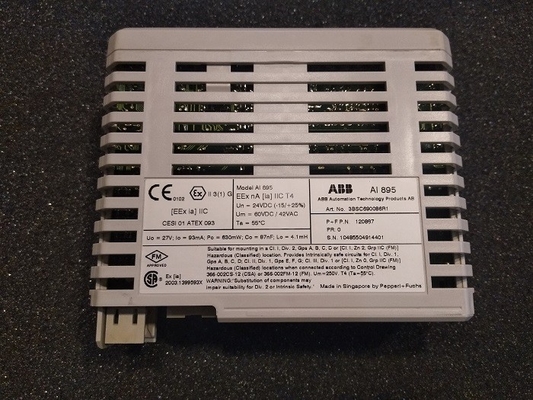

AI895 3BSC690086R1 ABB PLC Analog Input IS HART 8 ch S800 I/O
Product Details:
| Brand Name |
ABB |
| Model |
AI895 |
| Product ID |
3BSC690086R1 |
| Condition |
New |
| Gross Weight |
2.2 lbs / 35.2 oz / 1kg |
| Packing Size |
7" x 7" x 4" (18 cm x 18 cm x 10 cm) |
| Country of Origin |
Estonia |
| Lead Time |
In Stock |
| Shipping Port |
Xiamen |
| Payment |
T/T |
| Sales Price |
Inquiry |
| Color |
Depends on material |
| Warranty |
12 months |
| Lead time |
5-8 work days |
| Courier partners |
DHL, UPS, TNT, FedEx and EMS |
Additional Information:
| Resolution |
12 bit |
| Isolation |
Groupwise isolated from ground |
| Under/over range |
1.5 / 22 mA |
| Error |
Typ. 0.05%, Max. 0.1% |
| Temperature drift |
Typ. 100 ppm/°C |
| Input filter (rise time 0-90%) |
20 ms |
| Current limiting |
Built in current limited transmitter power |
| CMRR, 50Hz, 60Hz |
>80 dB |
| NMRR, 50Hz, 60Hz |
>10 dB |
| Rated insulation voltage |
50 V |
| Dielectric test voltage |
500 V a.c. |
| Power dissipation |
4.75 W |
| Current consumption +5 V Modulebus |
Typ. 130 mA |
| Current consumption +24 V external |
Typ. 270 mA, Max. <370 mA |

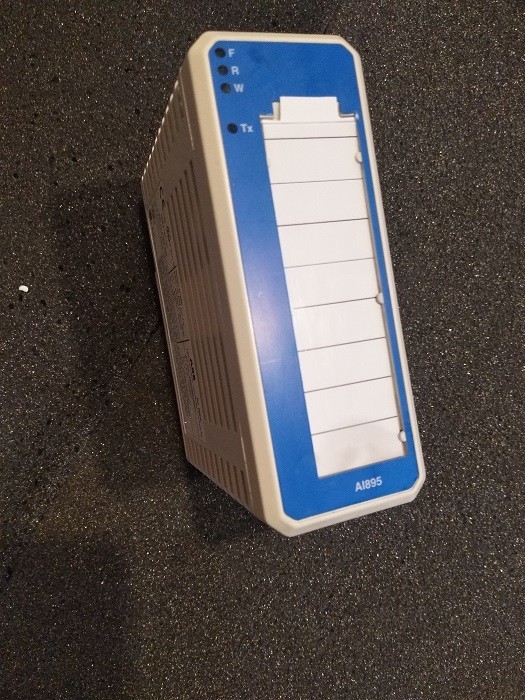

| Front LED’s |
F(ault), R(un), W(arning), Tx (HART communiation) |
| Supervision |
Internal process supply |
| CE mark |
Yes |
| Electrical safety |
IEC 61131-2, cFMus |
| Hazardous Location |
ATEX/IECEx Zone 2 with interface to Zone 0, cFMus C1, Div 2/Zone 2 with interface to C1, C2, C3 Div 1/Zone 0 |
| Marine certification |
ABS, BV, DNV-GL, LR |
| Protection rating |
IP20 according to IEC 60529 |
| Corrosive atmosphere ISA-S71.04 |
G3 |
| Climatic operating conditions |
0 to +55 °C (Storage -40 to +70 °C), RH=5 to 95 % no condensation, IEC/EN 61131-2 |
| Pollution degree |
Degree 2, IEC 60664-1 |
| Mechanical operating conditions |
IEC/EN 61131-2 |
| EMC |
EN 61000-6-4, 61000-6-2 |
| Overvoltage categories |
IEC/EN 60664-1, EN 50178 |
| Equipment class |
Class I according to IEC 61140; (earth protected) |
| Max ambient temperature |
55 °C (131 °F), for vertical mounting in compact MTU 40 °C (104 °F) |
| RoHS compliance |
DIRECTIVE/2011/65/EU (EN 50581:2012) |
| WEEE compliance |
DIRECTIVE/2012/19/EU |
The AI895 Analog Input Module can directly interface 2-wire transmitters and with a particular connection it can also interface 4-wire transmitters without losing the HART capability. The AI895 Analog Input Module has 8 channels. The module includes Intrinsic Safety protection components on each channel for connection to process equipment in hazardous areas without the need for additional external devices. Each channel can power and monitor a two-wire process transmitter and HART communication. The input voltage drop of the current input is typically 3 V, PTC included. The transmitter supply for each channel is able to provide at least 15 V at a 20 mA loop current to power Ex certified process transmitters and is limited to 23 mA in overload conditions.
TU890 and TU891 Compact MTU can be used with this module and it enables two wire connection to the process devices without additional terminals. TU890 for Ex applications and TU891 for non Ex applications.
Features and benefits
• 8 channels for 4...20 mA, single ended unipolar inputs.
• HART communication.
• 1 group of 8 channels isolated from ground.
• Power and monitor for Ex certified two-wire transmitters.
• Non energy-storing analog inputs for externally powered sources.
