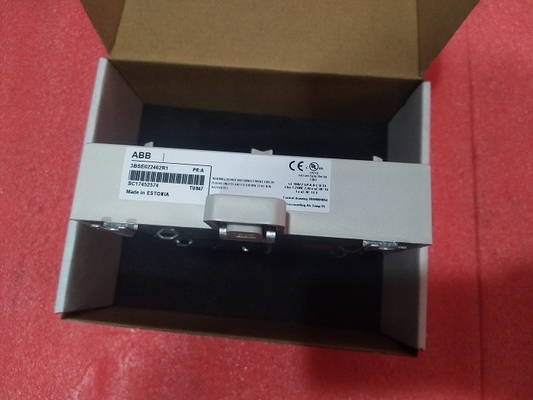

TU847 3BSE022462R1 ABB Bailey PLC Module Termination Unit S800 I/O VDF DCS ABB Module
Product Details:
| Brand Name |
ABB |
| Model |
TU847 |
| Product ID |
3BSE022462R1 |
| Condition |
New |
| Gross Weight |
2.2 lbs / 35.2 oz / 1kg |
| Packing Size |
7" x 7" x 4" (18 cm x 18 cm x 10 cm) |
| Country of Origin |
Estonia |
| Lead Time |
In Stock |
| Shipping Port |
Xiamen |
| Payment |
T/T |
| Sales Price |
Inquiry |
| Color |
Depends on material |
| Warranty |
12 months |
| Lead time |
5-8 work days |
| Courier partners |
DHL, UPS, TNT, FedEx and EMS |
Additional Information:
| Connector |
PROFIBUS. DSUB9 connector
Service ports: RJ45 connector |
| 24 V consumption typ. |
N/A |
| ModuleBus current distribution |
Maximum 5 V 1.5 A
Maximum 24 V 1.5 A |
| Mechanical Keys |
36 different combinations |
| Acceptable wire sizes |
0.25 - 2.5mm², 24 - 14 AWG
Recommended torque: 0.5 - 0.6 Nm
Stripping length: 6-7.5 mm, 0.24-0.30 in |
| Rated insulation voltage |
50 V |
| Dialectic test voltage |
500 V a.c |
| Temperature, Operating |
55° C (131° F) horizontal mounted. 40° C (104° F) vertical mounted |
| Temperature, Storage |
-25° C (-13° F) to +70° C (158° F) |
| Equipment class |
Class l according to IEC 60536; (earth protected) |
| Ingress protection |
IP20 according to IEC 529, (IEC 144) |
| CE- marking |
Yes |
| Electrical Safety |
cULus |
| Hazardous location |
cULus Hazardous Location Class1 Zone 2, ATEX Zone 2 |
| Marine certificates |
ABS, BV, DNV-GL, LR |
| RoHS compliance |
DIRECTIVE/2011/65/EU (EN 50581:2012) |
| WEEE compliance |
DIRECTIVE/2012/19/EU |

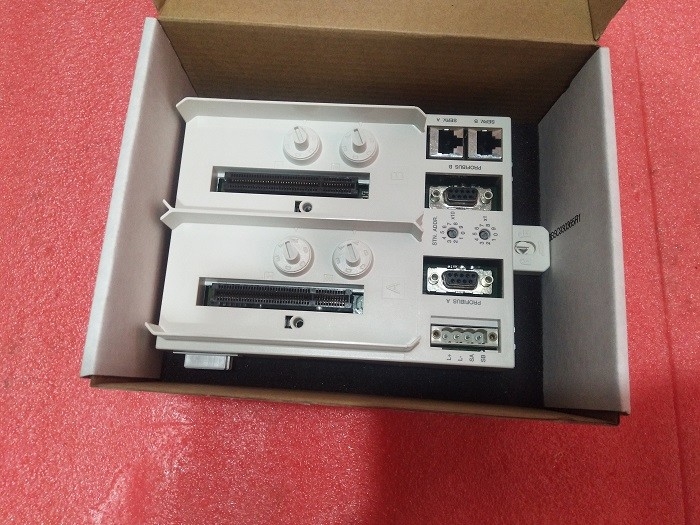

The TU847 is a module termination unit (MTU) for redundant configuration of the field communication interface CI840/CI840A. The MTU is a passive unit having connections for power supply, electrical ModuleBus, two CI840/CI840A and two rotary switches for station address (0 to 99) settings. A ModuleBus Optical Port TB842 can be connected to TU847 via TB806.
Four mechanical keys, two for each position, are used to configured the MTU for the right types of modules. Each key has six positions, which gives a total number of 36 different configurations. TU846/TU847 needs space to the left in order to be removed. Cannot be replaced with power applied. TU847 is also available in a G3 compliant version (TU847Z).
Features and benefits
• Power supply connection.
• Two PROFIBUS connections.
• Two service tool connections.
• Two rotary switch for station address setting.
• ModuleBus connections.
• Connector for ModuleBus Optical Port.
• Mechanical keying prevents insertion of the wrong module type.
• Latching device to DIN rail for locking and grounding.
• DIN rail mounted.
