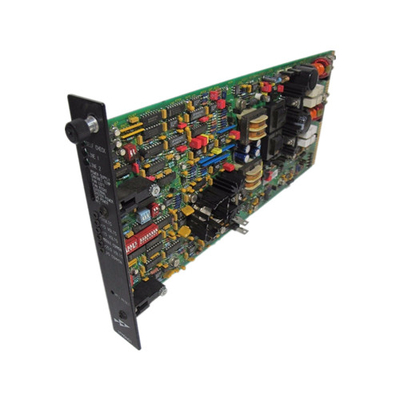

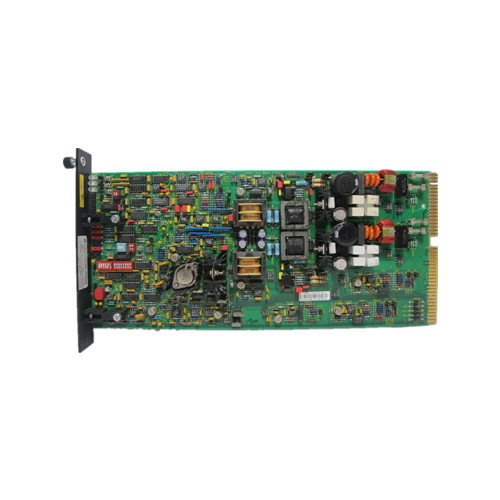

IPMON01 ABB Bailey Infi 90 Power Monitor Module 120/240V AC 125V DC 24va

IPMON01 ABB Bailey Infi 90 Power Monitor Module 120/240V AC 125V DC 24va

  • IPMON01 ABB Bailey Infi 90 Power Monitor Module 120/240V AC 125V DC 24va
  • IPMON01 ABB Bailey Infi 90 Power Monitor Module 120/240V AC 125V DC 24va
IPMON01 ABB Bailey Infi 90 Power Monitor Module 120/240V AC 125V DC 24va
Product Details:
Place of Origin: Sweden
Brand Name: ABB
Certification: COC
Model Number: IPMON01
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: inquiry
Packaging Details: original
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 10 Piece per a day
Contact Now
Detailed Product Description
Name: ABB Power Module Model: IPMON01
Package: STANDARD Warranty: 12 Months
Gross Weight: 2.2 Lbs / 35.2 Oz / 1kg Packing Size: 7" X 7" X 4" (18 Cm X 18 Cm X 10 Cm)
Lead Time: 1~3 Days Quality: 100%Brand
Product Name: Programmable Logic Controller Stock: Available
Highlight:

Bailey Infi 90 Power Monitor Module

,

IPMON01 ABB Module

,

125V DC Power Monitor Module

IPMON01 ABB Bailey Infi 90 Power Monitor Module 120/240V AC 125V DC 24va PLC Spare Parts


Product Details:

Brand NameABB
ModelIPMON01​​​​
Product IDN/M​
ConditionNew
Gross Weight2.2 lbs / 35.2 oz / 1kg
Packing Size7" x 7" x 4" (18 cm x 18 cm x 10 cm)
Country of OriginEstonia
Lead TimeIn Stock
Shipping PortXiamen
PaymentT/T
Sales PriceInquiry
ColorDepends on material
Warranty12 months
Lead time5-8 work days
Courier partnersDHL, UPS, TNT, FedEx and EMS


Additional Information:


Power module chassis
  Input power capacity
  Output bus capacity

  IPCHS02 Harmony power
  connector rating

IPCHS01, IPCHS02
20 A maximum per side

85 A at 5.1 VDC maximum
15 A at ±15.1 VDC maximum
85 A at 25.5 VDC maximum
12 A at 49.1 VDC maximum
12 A at 125.6 VDC maximum

Approximately 7 A

Power entry circuit breakerIPECB11, IPECB13

Power entry switch
  Input voltage
   IPECB11, IPEWS11
   IPECB13, IPEWS13

  Input current
  Voltage drop across
  breaker/ switch

IPEWS11, IPEWS13

102 to 264 VAC
102 to 144 VDC

20 A maximum
2 V drop at 20 A nominal

System fan
  Input power


  Frequency

IPFAN14

0.72 A nominal at 120 VAC
0.42 A nominal at 240 VAC
0.50 A at nominal 125 VDC

47 to 63 Hz

Vibration

13.2 to 100 Hz, 0.7 Gs
2 to 13.2 Hz, 12 mm (0.47 in.) peak-to-peak displacement

Certifications
  Canadian Standards Association (CSA)
  Factory Mutual (FM)

Certified for use as process control equipment in an ordinary (nonhazardous) location.

Approval for the following categories:
  Nonincendive for Class I Division 2, Groups A,B,C,D


Description​:
The Modular Power System II supplies 5 VDC, 15 VDC, –15 VDC, 24 VDC, 48 VDC, and 125 VDC power to Harmony components of the Symphony™ Enterprise Management and Control System. The power system provides the operating voltages to Harmony I/O blocks, and Harmony rack I/ O, controller, and communications modules as well as power to operate field devices. The power system accepts 120 VAC, 240 VAC, or 125 VDC input power.

The Modular Power System II consists of the following components:

■ Chassis:
IPCHS01 Power Module Chassis (supports Harmony rack modules only).
IPCHS02 Power Module Chassis (supports both Harmony blocks and rack modules).
IPFCH01 Power Fan Chassis.

■ Power entry:
IPECB11 Power Entry Circuit Breaker (AC).
IPECB13 Power Entry Circuit Breaker (DC).
IPESW11 Power Entry Switch (AC).
IPESW13 Power Entry Switch (DC).

■ Modules:
IPBLC01 Harmony Power (24 VDC).
IPFLD01 Field Power (24 VDC).
IPFLD24 Field Power (24 VDC).
IPFLD48 Field Power (48 VDC).
IPFLD125 Field Power (125 VDC).
IPMON01 Power Monitor Module.
IPSYS01 System Power (5 VDC, 15 VDC, –15 VDC, 24 VDC).

■ System fan:
IPFAN14Power System Fan (120/240 VAC, 125 VDC).
