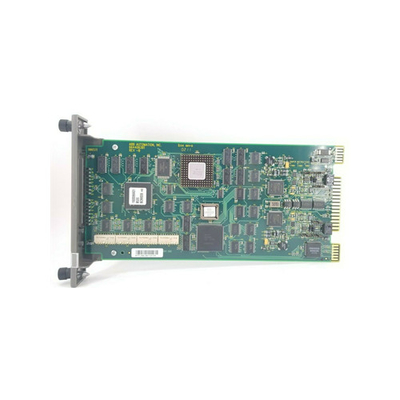

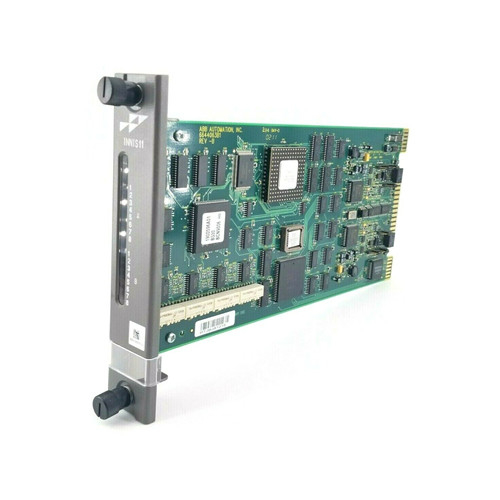

INNIS11 ABB Bailey Infi 90 Symphony Network Interface Module PLC Spare Parts
Product Details:
| Brand Name |
ABB |
| Model |
INNIS11 |
| Product ID |
N/M |
| Condition |
New |
| Gross Weight |
2.2 lbs / 35.2 oz / 1kg |
| Packing Size |
7" x 7" x 4" (18 cm x 18 cm x 10 cm) |
| Country of Origin |
Estonia |
| Lead Time |
In Stock |
| Shipping Port |
Xiamen |
| Payment |
T/T |
| Sales Price |
Inquiry |
| Color |
Depends on material |
| Warranty |
12 months |
| Lead time |
5-8 work days |
| Courier partners |
DHL, UPS, TNT, FedEx and EMS |
Additional Information:
| Model |
INNIS11 |
|
Power requirements
Operating voltage
Power dissipation
|
+5 VDC, ±5% at 1.78 A typical
8.9 W typical
|
| Microprocessor |
16 bits running at 10 MHz
|
|
EMemory
SRAM
NVRAM
ROM
|
2 Mb RAM
512 kb ROM
512 kb NVRAM
|
| Mounting |
Occupies one slot in a standard module mounting unit. |
| Certification |
Certified for use as process control equipment in an ordinary (nonhazardous) location.
Approval for the following categories:
Nonincendive for:
Class I Division 2, Groups A,B,C,D
Class II, Division 2, Groups F,G
|
Description:
Harmony sequence of events (SOE) provides distributed event monitoring, recording, and reporting capabilities for the Symphony™ Enterprise Management and Control System. An SOE event is a transition of a digital signal from either on to off or from off to on. A series of SOE modules collect and time-stamp these digital transition events which are then made available to the system.
The INSEM01 Sequence of Events Master module communicates with the INNIS11 Network Interface module and the INTKM01 Time Keeper Master module. The INNIS11 module is the front end for all Cnet (control network) communication interfaces and is the intelligent link between a node and Cnet. The INSEM01 module communicates directly with the INNIS11 module. The INSEM01 module is responsible for managing the distributed sequence of events system, which includes managing:
■ 1,500 points coming from the SOE I/O modules in up to 1,000 Harmony control units (HCU).
■ 256 complex triggers with 16 operands each.
■ 3,000 simple triggers. The INSEM01 module is configured using the following function codes:
■ Executive block (FC 243).
■ Addressing interface definition (FC 244).
■ Input channel interface (FC 245).
■ Trigger definition (FC 246).
The INSEM01 module monitors Harmony control units for data on an exception report basis, collects and sorts data it acquires, and provides SOE data to human system interfaces for report presentation after some predefined trigger condition occurs. Digital state transitions are collected at the HCU level by IMSED01 and INSET01 modules, then forwarded to the INSEM01 module. The INSEM01 module records the information and sorts it according to time in an internal database. When a trigger condition occurs, the human system interface is notified and data transfer occurs
