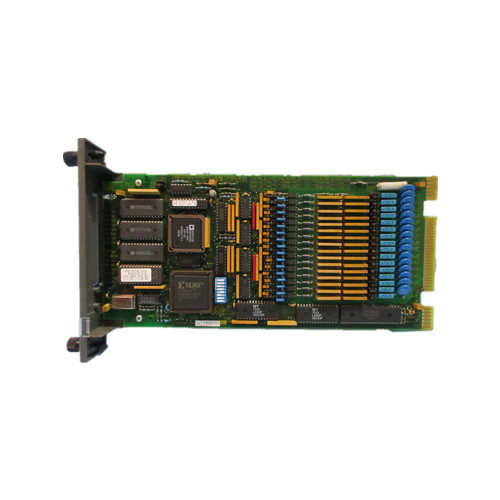

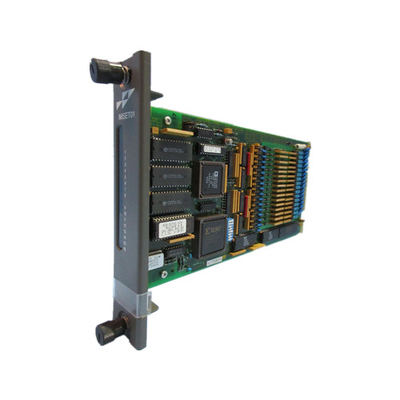

IMSET01 ABB Bailey Infi 90 Symphony Sequence of Events Timing Module PLC Spare Parts
Product Details:
| Brand Name |
ABB |
| Model |
IMSET01 |
| Product ID |
N/M |
| Condition |
New |
| Gross Weight |
2.2 lbs / 35.2 oz / 1kg |
| Packing Size |
7" x 7" x 4" (18 cm x 18 cm x 10 cm) |
| Country of Origin |
Estonia |
| Lead Time |
In Stock |
| Shipping Port |
Xiamen |
| Payment |
T/T |
| Sales Price |
Inquiry |
| Color |
Depends on material |
| Warranty |
12 months |
| Lead time |
5-8 work days |
| Courier partners |
DHL, UPS, TNT, FedEx and EMS |
Additional Information:
| Model |
IMSET01 |
|
Power requirements
Operating voltage
Power dissipation
|
+5 VDC, ±5% at 1.78 A typical
8.9 W typical
|
| Microprocessor |
16 bits running at 10 MHz
|
|
EMemory
SRAM
NVRAM
ROM
|
2 Mbytes (total),
64 kbytes (available) 512 kbytes (total),
256 kbytes (available) 512 kbytes (total)
|
| Mounting |
Occupies one slot in a standard INFI 90 module mounting unit |
| Certification |
CSA certified for use as process control equipment in an ordinary (nonhazardous) location. Factory Mutual approved for use in Class I, Division 2, hazardous locations |
Description:
The Distributed Sequence of Events (SOE) provides a fully integrated system approach to event monitoring, recording and reporting for the Symphony Enterprise Management and Control System. Digital input transitions are collected and time-stamped at the time of occurrence. All input detection modules are time-synchronized, and coordinated through an external time input (e.g., satellite receiver system (SRS)). This event input data is passed over the network to the INSOE01, Sequence of Events Server Node which is responsible for collecting and sorting event data coming from distributed Harmony control units (HCU). This stored event data is made available to the human system interface for report generation.
The SOE system is comprised of the following Harmony rack
• INSEM01 Sequence of Events Master.
• INTKM01 Time Keeper Master.
• INNIS01 Network Interface.
• IMSET01 Sequence of Events Timing.
• IMSED01 Sequence of Events Digital Input.
