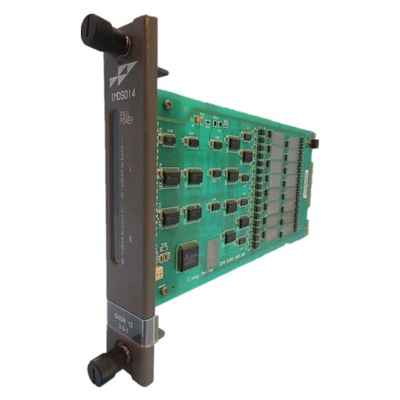

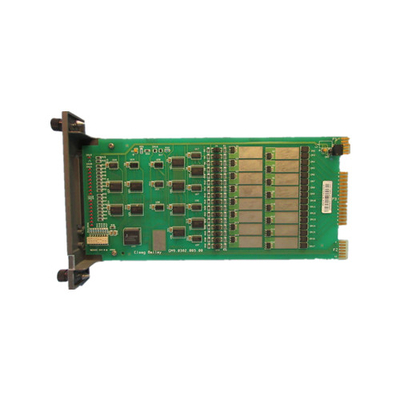

MDSO14 ABB Bailey Infi 90 Symphony Digital Slave Output Module PLC Spare Parts
Product Details:
| Brand Name |
ABB |
| Model |
IMDSO14 |
| Product ID |
N/M |
| Condition |
New |
| Gross Weight |
2.2 lbs / 35.2 oz / 1kg |
| Packing Size |
7" x 7" x 4" (18 cm x 18 cm x 10 cm) |
| Country of Origin |
Estonia |
| Lead Time |
In Stock |
| Shipping Port |
Xiamen |
| Payment |
T/T |
| Sales Price |
Inquiry |
| Color |
Depends on material |
| Warranty |
12 months |
| Lead time |
5-8 work days |
| Courier partners |
DHL, UPS, TNT, FedEx and EMS |
Additional Information:
| Model |
IMDSO14 |
|
Power Supply
Voltages:
Current Consumption:
|
5 VDC (±5%)
275 mA (typical)
370 mA (maximum)
1.375 W (typical)
1.850 W (maximum)
|
Power requirements
Max. load voltage
Max. load current
Max. off leakage current
Max. on voltage drop
Max. surge current
|
+5.00, ± 0.25 VDC at 150 mA; 0.75 W nominal
24 VAC to 240 VAC
3.0 A at 25°C (77°F)
2.0 A at 50°C (122°F)
1.0 A at 70°C (158°F)
8.5 mA at 120 VAC, 25°C (77°F)
17.5 mA at 240 VAC, 25°C (77°F)
3.0 V at 3.0 A, 25°C (77°F) with 0.3-m (1-ft) long termination device cable
50 A for 1 cycle
|
Debounce Times
|
ON time 8.5 milliseconds (typical)
OFF time 8.5 milliseconds (typical)
|
| Input Signal Frequency Limit |
Upper frequency limit for using debounce: 40Hz |
| Mode Accuracy |
Totalize: ± 0 Counts
Frequency Count: ± 1 Count
Period Determination: ± 1 Count
|
| Maximum Input Frequency |
50 kHz (at 50% duty cycle) |
| Timebase Accuracy |
±0.033% |
| Isolation Voltage |
150 V RMS channel to channel
350 V RMS inputs to logic
|
| Surge Withstand |
Meets requirements of IEEE Surge Capability Standard 472-1974, on all debounced inputs
NOTE: If you select a preamplifier for a channel, the counter associated with that channel may increment during surge pulsing
|
| Mounting |
Uses 1 slot in Infi 90 Module Mounting Unit. |
| Certification |
CSA certified as process control equipment in an ordinary (non-hazardous) location. |
Description:
The IMDSO14 Digital Output module outputs 16 separate digital signals from the INFI 90® OPEN Strategic Process Management System to a process. These digital outputs are used by control modules to control (switch) process field devices.
There are five versions of the digital output module.
• IMDSO01/02/03.
• IMDSO14.
• IMDSO15
The difference between the IMDSO14 module and the IMDSO01/02/03 is in the output circuitry, switching capabilities, and EMI protection circuitry. Refer to product instruction I-E96-310 for information on the IMDSO01/02/03.
The difference between the IMDSO14 module and the IMDSO04 module is in the EMI protection circuitry. Additionally, the IMDSO14 module will handle 24 or 48 VDC load voltages; the IMDSO04 is for 24 VDC only. Refer to product instruction I-E96-313 for information on the IMDSO04 module. The IMDSO14 module may be used as a direct replacement for the IMDSO04 module.
