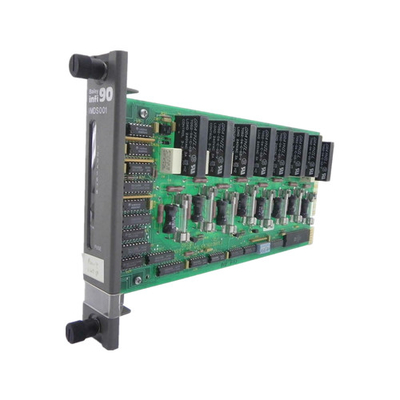

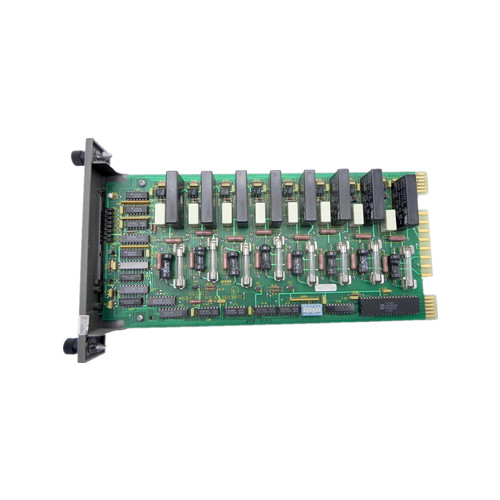

IMDSO01 ABB Bailey Infi 90 Digital Output Slave Module PLC Spare Parts
Product Details:
| Brand Name |
ABB |
| Model |
IMDSO01 |
| Product ID |
N/M |
| Condition |
New |
| Gross Weight |
2.2 lbs / 35.2 oz / 1kg |
| Packing Size |
7" x 7" x 4" (18 cm x 18 cm x 10 cm) |
| Country of Origin |
Estonia |
| Lead Time |
In Stock |
| Shipping Port |
Xiamen |
| Payment |
T/T |
| Sales Price |
Inquiry |
| Color |
Depends on material |
| Warranty |
12 months |
| Lead time |
5-8 work days |
| Courier partners |
DHL, UPS, TNT, FedEx and EMS |
Additional Information:
| Model |
IMDSO01 |
|
Power Supply
Voltages:
Current Consumption:
|
± 5 VDC Logic Supply ± 5%
± 24 VDC I/O Supply + 12%, -10%
5 VDC 1.4 Amps typical, 1.5 Amps maximum
24 VDC 62 mA typical, 70 mA maximum
|
Power requirements
Max. load voltage
Max. load current
Max. off leakage current
Max. on voltage drop
Max. surge current
|
+5.00, ± 0.25 VDC at 150 mA; 0.75 W nominal
24 VAC to 240 VAC
3.0 A at 25°C (77°F)
2.0 A at 50°C (122°F)
1.0 A at 70°C (158°F)
8.5 mA at 120 VAC, 25°C (77°F)
17.5 mA at 240 VAC, 25°C (77°F)
3.0 V at 3.0 A, 25°C (77°F) with 0.3-m (1-ft) long termination device cable
50 A for 1 cycle
|
Debounce Times
|
ON time 8.5 milliseconds (typical)
OFF time 8.5 milliseconds (typical)
|
| Input Signal Frequency Limit |
Upper frequency limit for using debounce: 40Hz |
| Mode Accuracy |
Totalize: ± 0 Counts
Frequency Count: ± 1 Count
Period Determination: ± 1 Count
|
| Maximum Input Frequency |
50 kHz (at 50% duty cycle) |
| Timebase Accuracy |
±0.033% |
| Isolation Voltage |
150 V RMS channel to channel
350 V RMS inputs to logic
|
| Surge Withstand |
Meets requirements of IEEE Surge Capability Standard 472-1974, on all debounced inputs
NOTE: If you select a preamplifier for a channel, the counter associated with that channel may increment during surge pulsing
|
| Mounting |
Uses 1 slot in Infi 90 Module Mounting Unit. |
| Certification |
CSA certified as process control equipment in an ordinary (non-hazardous) location. |
Description:
The IMDSO01, IMDSO02 and IMDSO03 Digital Output Modules (DSO) output eight separate digital signals from the INFI 90® Process Management System to a process. Control modules use these outputs to control (switch) process field devices.
The IMDSO01, IMDSO02 and IMDSO03 Digital Output (DSO) Modules output eight isolated digital signals from the INFI 90 system to control a process. The signals provide digital switching (on or off) for process field devices. Control modules perform the control functions and I/O modules provide the input and output signals. The DSO modules all function and operate the same. The only difference is in the output switching capability and associated fusing.
