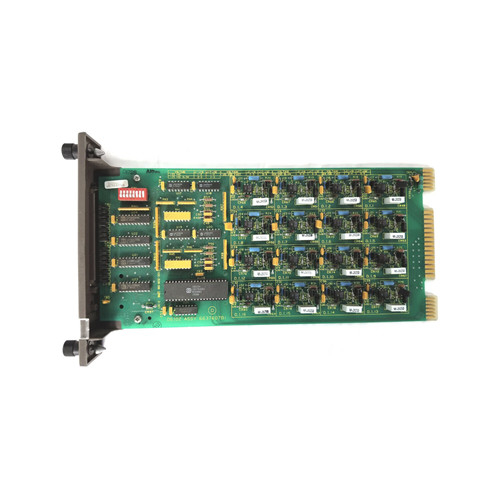

IMDSI02 ABB Bailey Infi 90 Digital Slave Input Module PLC Spare Parts
Product Details:
| Brand Name |
ABB |
| Model |
IMDSI02 |
| Product ID |
N/M |
| Condition |
New |
| Gross Weight |
2.2 lbs / 35.2 oz / 1kg |
| Packing Size |
7" x 7" x 4" (18 cm x 18 cm x 10 cm) |
| Country of Origin |
Estonia |
| Lead Time |
In Stock |
| Shipping Port |
Xiamen |
| Payment |
T/T |
| Sales Price |
Inquiry |
| Color |
Depends on material |
| Warranty |
12 months |
| Lead time |
5-8 work days |
| Courier partners |
DHL, UPS, TNT, FedEx and EMS |
Additional Information:
| Model |
IMDSI0 |
| Voltage |
+5 VDC (± 5%) |
Current Consumption
|
135 mA (typical)
200 mA (maximum) |
Dissipation (logic only)
|
750 mW (typical)
1.2 W (maximum) |
| Load Voltage |
24 VDC |
| Load Current (maximum) |
250 mA |
| Off Leakage Current (maximum) |
10 µA @ 70ºC (158ºF) |
| On Voltage Drop (maximum) |
2.4 V @ 70ºC (158ºF) |
| Current Consumption |
150 mA (typical), 250 mA (maximum) |
| Isolation |
300 V rms between output and logic circuitry and output to output. CSA approved for 300 V isolation. |
| Surge Withstanding Capability |
Meets ANSI/IEEE C37.90A-1974 "Guide for Surge Withstanding Capability Test". |
| Mounting |
Occupies one slot in a standard Infi 90 module mounting unit. |
| Ambient Temperature |
0º to 70ºC (32º to 158ºF) |
Relative Humidity
|
0 to 95% up to 55ºC (131ºF) (non-condensing)
0 to 45% up to 70ºC (158ºF) (non-condensing)
|
| Atmospheric Pressure |
Sea level to 3 km (1.86 miles) |
| Air Quality |
Non-corrosive |
| Certification |
CSA certified as process control equipment in an ordinary (non-hazardous) location. |
Description:
The Digital Slave Input module (IMDSI02) is an interface used to bring sixteen separate process field signals into the Infi 90 Process Management System. These digital inputs are used by master modules to monitor and control a process.
The Digital Slave Input module (IMDSI02) brings sixteen separate digital signals into the Infi 90 system for processing and monitoring. It interfaces process field inputs with the Infi 90 Process Management System. A contact closure, switch or solenoid is an example of a device that supplies a digital signal. Master modules provide the control functions; slave modules provide the I/O.
