IMASI02 ABB Bailey Infi 90 Slave 5/15v-dc Analog Input Module PLC Spare Parts
Product Details:
| Brand Name |
ABB |
| Model |
IMASI13 |
| Product ID |
N/M |
| Condition |
New |
| Gross Weight |
2.2 lbs / 35.2 oz / 1kg |
| Packing Size |
7" x 7" x 4" (18 cm x 18 cm x 10 cm) |
| Country of Origin |
Estonia |
| Lead Time |
In Stock |
| Shipping Port |
Xiamen |
| Payment |
T/T |
| Sales Price |
Inquiry |
| Color |
Depends on material |
| Warranty |
12 months |
| Lead time |
5-8 work days |
| Courier partners |
DHL, UPS, TNT, FedEx and EMS |
Additional Information:
| Power requirements Operating voltage |
5 VDC at 500 mA typical, maximum 750 mA |
| A-to-D resolution Conversion |
24 bits 180 msec for all 16 channels; each channel has dedicated A/D converter
|
| Accuracy (% of full scale range) Current High level voltage Low level voltage Resistance Temperature effect 0° to 70° C (32° to 158° F) |
0.02% 0.04% 0.03% 0.05% ± 0.003% of full scale range per degree C maximum |
| CE mark declaration EMC96 Directive 89/336/EEC Low Voltage Directive 73/23/ EEC |
This product, when installed in a Symphony cabinet, complies with the following Directives/Standards for CE marking.
EN50082-2 Generic Immunity Standard - Part 2: Industrial Environment
EN50081-2 Generic Emission Standard - Part 2: Industrial Environment
EN61010-1 Safety Requirements for Electrical Equipment for Measurement, Control and Laboratory Use - Part 1: General Requirements
|
|
Certifications
CSA (pending)
Factory Mutual (FM)
(pending)
|
Certified for use as process control equipment in an ordinary (nonhazardous) location.
Approved as nonincendive equipment for use in Class I; Division 2; Groups A, B, C, D; hazardous location.
|
Description:

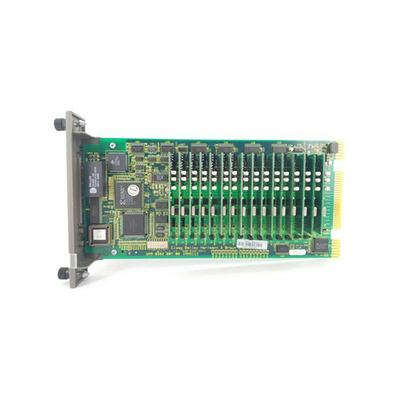

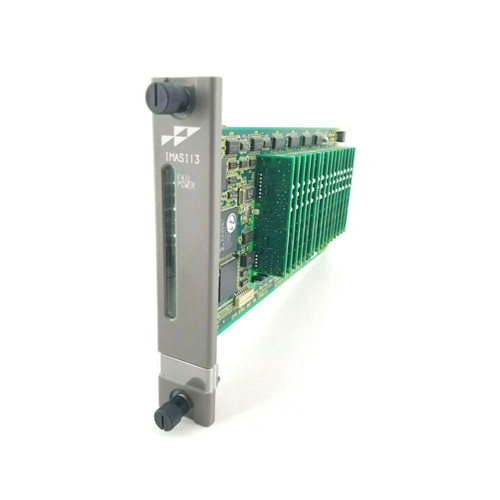

The IMASI13 Analog Input Module is a Harmony rack I/O module that is part of the Symphony Enterprise Management and Control System. It has 16 analog input channels that interface isolated thermocouple, millivolt, RTD, and high level analog signals to a controller with an analog-to-digital conversion resolution of 24 bits. Each channel has its own analog-to-digital converter and can be independently configured to handle the desired input type. These analog inputs are used by a controller to monitor and control a process. The IMASI13 module can be used as a direct replacement for the IMASI03 module with only minor modifications. Changes to specification S11 in function code 216 are required to handle the differences in resolution choices. Verification of power supply sizing calculations and system current requirements could be necessary because of the change in power consumption. This instruction explains the IMASI13 module specifications and operation. It details the procedures necessary to complete setup, installation, maintenance, troubleshooting, and replacement of the module
