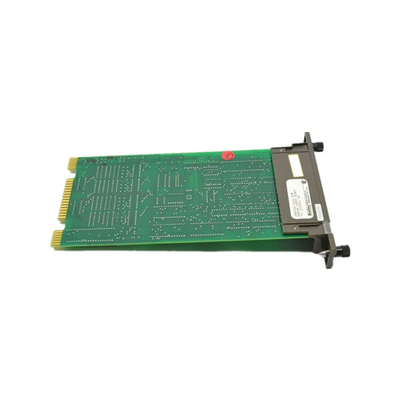

IMASI02 ABB Bailey Infi 90 Slave 5/15v-dc Analog Input Module PLC Spare Parts
Product Details:
| Brand Name |
ABB |
| Model |
IMASI02 |
| Product ID |
N/M |
| Condition |
New |
| Gross Weight |
2.2 lbs / 35.2 oz / 1kg |
| Packing Size |
7" x 7" x 4" (18 cm x 18 cm x 10 cm) |
| Country of Origin |
Estonia |
| Lead Time |
In Stock |
| Shipping Port |
Xiamen |
| Payment |
T/T |
| Sales Price |
Inquiry |
| Color |
Depends on material |
| Warranty |
12 months |
| Lead time |
5-8 work days |
| Courier partners |
DHL, UPS, TNT, FedEx and EMS |
Additional Information:
|
Logic Power
Power Dissipation
|
5 VDC ±5% at 85 mA typical + 15 VDC ±5% at 25 mA typical - 15 VDC ±5% at 20 mA typical
1.1 W typical
|
|
Analog Inputs
Analog Updates
A/D Resolution
Analog Accuracy
|
15 Independently configured channels:
Analog Input Ranges; 4-20 mA, 1-5 VDC, 0-1 VDC, 0-5 VDC, 0-10 VDC, -10 VDC to +10 VDC
A/D Conversions 10 times per second
14 Bits with polarity
0.1% for 4-20 mA
1-5 VDC, 0-5 VDC
0-10 VDC and ±10 VDC
0.25% for 0-1 VDC
|
| Common Mode Voltage |
-12 VDC minimum
+15 VDC maximum
±12 VDC for ±1 VDC input span
±10 VDC for ±5 VDC input span
±5 VDC for ±10 VDC input span
|
| Mounting |
Occupies a single slot in a standard Infi 90 Module Mounting Unit (MMU). |
| Certification |
CSA certified for use as process control equipment in an ordinary (nonhazardous) location |
Description:
The Analog Slave Input module (IMASI02) is an interface that supplies fifteen separate process field signals into the Infi 90 Process Management System. These analog inputs are used by the Multi-Function Processor Module (MFP) to monitor and control a process. The slave can also send operating commands it receives from the MFP or the Smart Transmitter Terminal (STT) to Bailey Controls smart transmitters.
