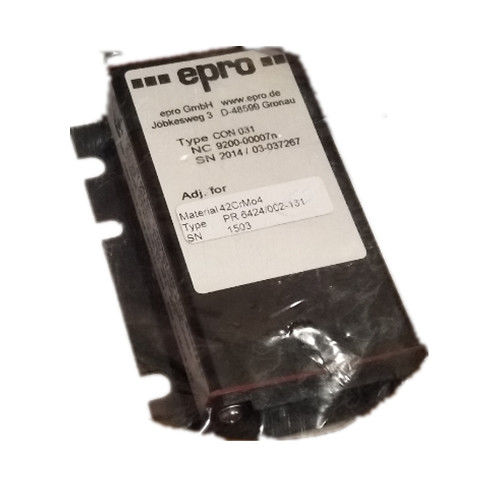

CON 031 CON031 Eddy Current Displacement Transducer Sensor

CON 031 CON031 Eddy Current Displacement Transducer Sensor

  • CON 031 CON031 Eddy Current Displacement Transducer Sensor
  • CON 031 CON031 Eddy Current Displacement Transducer Sensor
CON 031 CON031 Eddy Current Displacement Transducer Sensor
Product Details:
Place of Origin: Germany
Brand Name: Emerson
Certification: COC
Model Number: CON031
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: inquiry
Packaging Details: original
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 10 Piece per a day
Contact Now
Detailed Product Description
Product Name: Eddy Current Displacement Transducer Sensor Product Model: CON031
Color: Black Voltage: 220V/380V
Dimension(l*w*h): 440x700x721mm Warranty: 1 Year
Condition: NEW100% Gross Weight: 6.6 Lbs / 105.8 Oz / 3kg
Packing Size: 11.8" X 7.9" X 9.9" (30 Cm X 20 Cm X 25 Cm)
Highlight:

CON031 Eddy Current Displacement Sensor

,

CON031 eddy current displacement sensor

,

CON031 Eddy Current Displacement Transducer

Emerson EPRO CON031 Eddy Current Displacement Transducer Sensor CON 031





Product Details:

Brand Name Emerson
Model CON031
Series N/m
Condition New
Gross Weight 6.6 lbs / 105.8 oz / 3kg
Packing Size 11.8" x 7.9" x 9.9" (30 cm x 20 cm x 25 cm)
Country of Origin Germany
Lead Time In Stock
Shipping Port Xiamen
Payment T/T
Sales Price Inquiry
Color Depends on material
Warranty 12 months
Lead time 5-8 work days
Courier partners DHL, UPS, TNT, FedEx and EMS



Additional Information:

Input: Connection of eddy current sensors of types:
PR 6422/..; PR 6423/.. PR 6424/.. PR 6425/.. PR 6426/
Supply voltage range: -23V ... -32V (for output voltage range -4V ... -20V)
-21V ... -32V (for output voltage range -2V ... -18V)
(supply voltage min. 3V greater than the output voltage)
Output: D.C. voltage, proportional to the static transducer distance, with a superimposed dynamic signal
proportional to the dynamic distance.
Connections protected against open-circuit, short-circuit and wrong polarity
Output voltage range: selectable ranges (-2V ... -18V or -4V ... -20V)
Maximum output voltage: -1V ... 22V
Reference point of the output voltage
for symmetrical measuring ranges:
-10V (-2V ... -18V)
-12V (-4V ... -20V)
Internal resistance 100 Ohm
Rise time: < 15 μs
Measuring error:
All specifications refer to the f.s.d.
Linearity error:
Material: 42 Cr Mo4
Temperature error:
Zero point:
Sensitivity:
Long-term drift:
Influence of supply voltage:
with PR 6422/.. 1,5% MR: 1,0 mm
with PR 6423/.. 1,0% MR: 2,0 mm
with PR 6424/.. 1,5% MR: 4,0 mm
with PR 6425/.. 6,0% MR: 4,0 mm
with PR 6426/.. 1,5% MR: 8,0 mm
200 mV/ 100
< 2% / 100 K
0,3 % max.
< 20 mV / V
