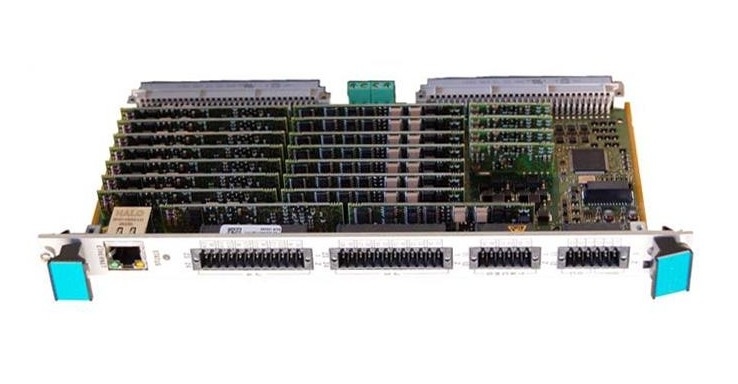

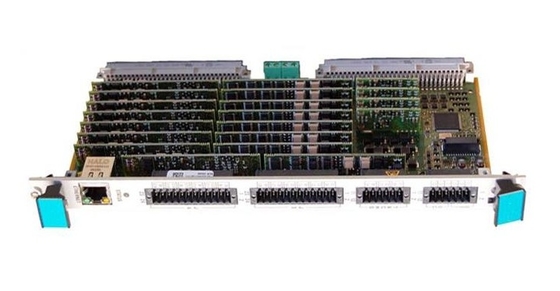

XIO16T 620-002-000-113 Extended Condition Monitoring Modules
Product Details:
|
Brand Name
|
Others
|
|
Model
|
XIO16T
|
|
Ordering information
|
620-002-000-113
|
|
Catalog
|
Vibration Monitoring
|
|
Origin
|
China
|
|
Dimension
|
16*16*12cm
|
|
Weight
|
0.8kg
|
|
HS Code
|
8537101190
|
|
Payment
|
T/T
|
|
Sales Price
|
$2000
|
|
Warranty
|
12 months
|
|
Lead time
|
3-5 work days
|
Additional Information:
|
Features
|
|
high-performance condition monitoring
|
|
16 dynamic channels and 4 tachometer channels (also configurable as DC inputs)
|
|
Individually configurable inputs, channel filters, processing and outputs – with simultaneous data acquisition (fixed frequency or order tracked)
|
|
24-bit data acquisition and high SNR data processing, with data quality checks
|
|
Up to 20 processed outputs per channel
|
|
High-resolution spectra (FFT): up to 6400 lines every 500 ms, up to 3200 lines every 200 ms, up to 1600 lines every 100 ms
|
|
Data aggregation of internal spectra (up to 100 ms) every 1 s
|
|
Pre-trigger and post-trigger data logging at up to 100 ms
|
|
Multiple alarms per processed output with configurable limits, hysteresis and time delay
|
Description:
The XMx16 + XIO16T extended condition monitoring modules are designed for operation with the rack-based machinery monitoring systems.A XMx16 + XIO16T module consists of a processing module and a input/output (interface) module that provide 16 dynamic and 4 tachometer channels of highperformance machinery condition monitoring.
Note: The XMV16 + XIO16T module is optimised for machinery vibration monitoring applications and the XMC16 + XIO16T module is optimised for machinery combustion monitoring applications.
The XMx16 + XIO16T extended condition monitoring modules are latest-generation condition monitoring modules, which together with the software, offer several key advantages over the CMC16/IOC16T card pair and VM600 CMS software that they replace:
state-of-the-art technology, stronger system capabilities (increased amplitude and spectral resolution, more buffer memory for pre-event and post-event data, more powerful module-level processing, faster data acquisition and storage rates), improved software interface with powerful high-resolution plots, integrated data management, and simplified network access with open interfaces.
The XMx16 processing module is installed in the front of the rack and the XIO16T module is installed in the rear. Either a standard rack (ABE04x) or slimline rack (ABE056) can be used and each module connects directly to the rack’s backplane using two connectors.
