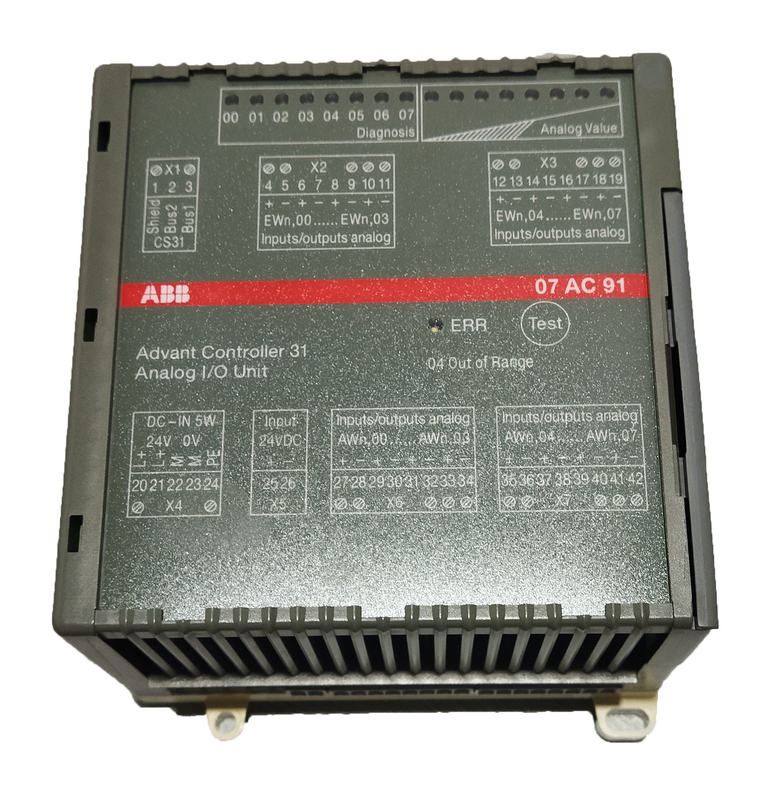

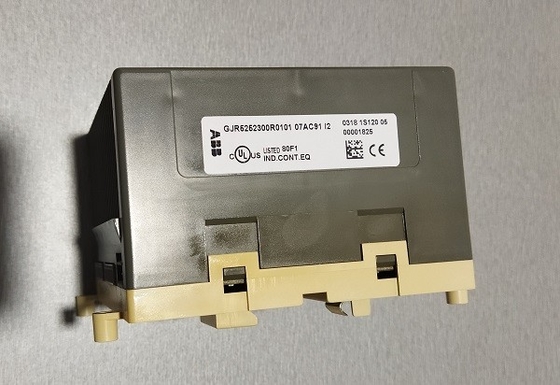

07AC91 GJR5252300R0101 ABB AC31 Analog I/O Module 8AC 24VDC AC U/I 12bit+Sign

07AC91 GJR5252300R0101 ABB AC31,Analog I/O module 8AC,24VDC,AC:U/I,12bit+Sign,1-wire

Product Details:

Additional Information:

Description:

Analog Input/Output Module 07 AC 91 16 inputs/outputs, configurable for ±10 V, 0...10 V, 0...20 mA, 8/12 bit resolution, 2 operating modes, CS31 system bus

The PLC offers an interconnection element ANAI4_20 for measuring signals of 4...20 mA (refer to 907 PC 331, connection element library). The module 07 AC 91 uses up to eight input words on the CS31 system bus plus up to eight output words. In the operating mode "8 bits", 2 analog values are packed into one word. The operating voltage of the unit is 24 V DC. The CS31 system bus connection is electrically isolated from the rest of the module. The module offers a number of diagnosis functions (see chapter "Diagnosis and displays").

In general, the technical system data listed under "System data and system configuration" in chapter 1 of volume 2 of the "Advant Controller 31" system description are valid. Additional data or data which are different from the system data are listed as follows.
