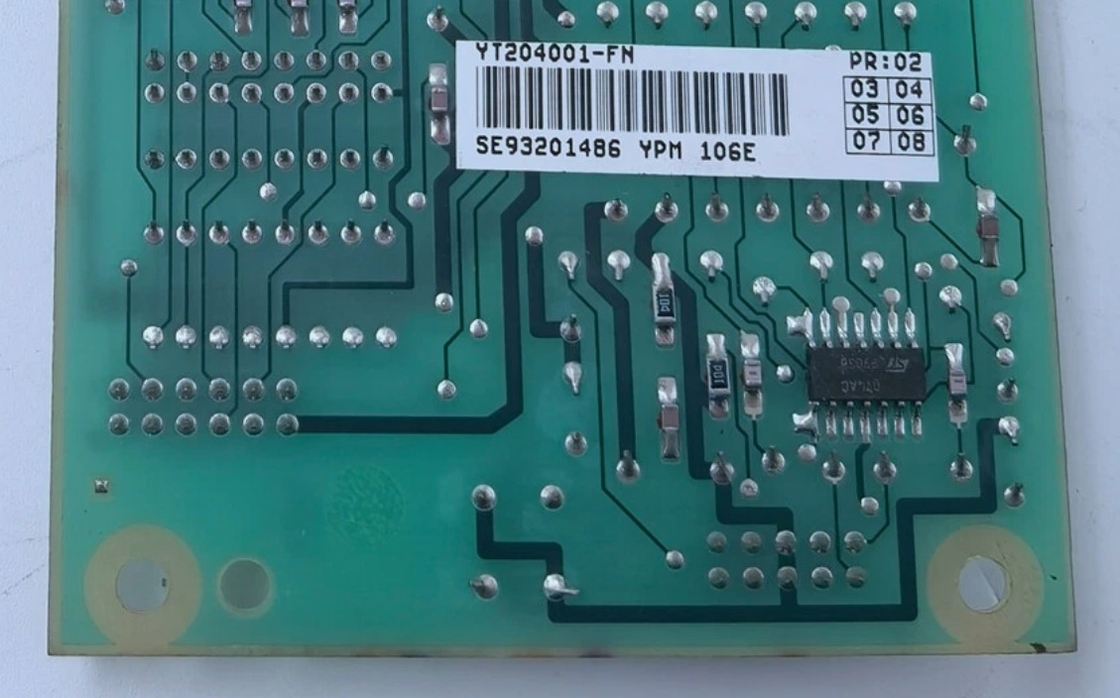

YPM 106E YT204001-FN ABB Analog Output Board

YPM 106E YT204001-FN ABB Analog Output Board

Product Details:

Description:

YPM106E is designed as ABB TYRAK L/ MIODI Analog outpur board.

YPM106E has 12 Bits resolution and 2 channels.

The AB8 Tyrak L thyristor convertor series is de-signed for demanding industrial operation and satisfiesthe requirements of the international standard,IEC 146.

Check that the strapping of the board is in agreement with that shown in the circuit diagram and that this is in agreement with the instrument connected to theconnection unit, board YPM 105.

The strapping can be performed for either 0 - + 10 V or-10V-+10 V.Parameter AO35.1MO or AO35.2MO on function module AOUT35 must be set at the same time, depending on whether unipolar mode(0-+10 V)or bipolar mode(-10V-+10 V)is reguired. The parameter is to be set to "0" with unipolar mode and to"1"when the channel is to be bipolar.
