Invensys Triconex 8110 Power Supply Card Rack

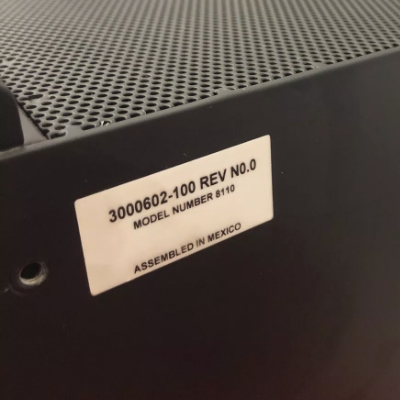

8110 3000602-100 Invensys Triconex Power Supply Card Rack

Product Details:

Description:

A Tricon system is made up of one ormore chassis assemblies which containU'O and communication modules. Thefirst chassis ofa system is called themain chassis (model 8110). To enlargea system, expansion chassis (model811 1) and/or RXM chassis (model8112) can be added. (See “SystemConfiguration” on page 1l for details.)

lO Expansion Bus

Each chassis has six RS.485 //O expan-sion bus ports at the top left corner ofthe backplane. There are two sets ofports for channels A, B, and C,providing for two triplicated serialcommunications paths between chassis.One set of cables is required for eachexpansion chassis and for the RXMchassis which houses the pimary RXMmodule set. The standard length of acable set (model 9000) is 6 feetlonger cables are available ifneededThe triplicated l/O bus transfers databetween the //O modules and the mainprocessors at 375 kilobits per secondThe communication bus runs betweenthe main processors and the communi.cation modules at 2 megabits persecond.
